Description

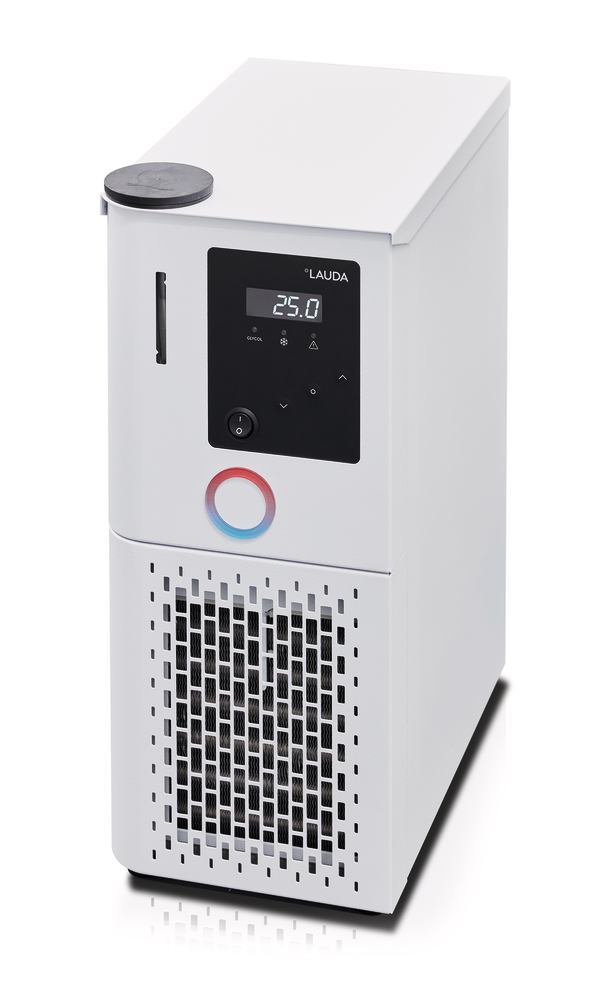

Rotary cooler Microcool MC 250, working temp. -10 to 40 °C, 250 W/20 °C
Applications: cooling of rotary evaporators, distillation systems and analytical apparatus, as well as supply of cold traps.
- LED temperature display, display resolution 0.1 °C
- Time-controlled starting and shutdown of the circulation chiller (Auto-Start or Auto-Shut-Down-Timer)
- Illuminated sight glass for checking the thermostating liquid level
- Filler neck on top of apparatus at front
- Removable front grid for cleaning the condenser
- RS 232 interface
Delivery incl. pump connection socket 10 mm (model MC 250). For the models MC 600 and MC 1200, two 10 mm hose fittings with union nut G 3/4″ are still required. Please order separately.
Technical Information
| Type | MC 250 |
| Operating temperature | -10 to +40 °C |
| Temperature constancy | ±0,5 K |
| Display resolution | 0,1 °C |
| Heating output | 0 W |
| Cooling capacity | 20 °C: 250 W 10 °C: 200 W 0 °C: 150 W -10 °C: 90 W |
| Max. pump pressure | 350 mbar |
| Max. flow | 16 l/min |
| Bath volume | 2-4 l |
| Outer width | 200 mm |
| Outer depth | 350 mm |
| Outer height | 465 mm |
| Timer | 1 min to 99 h, 59 min |
| Weight | 26 kg |
| Mains connection | 230 V, 50 Hz |
