Description

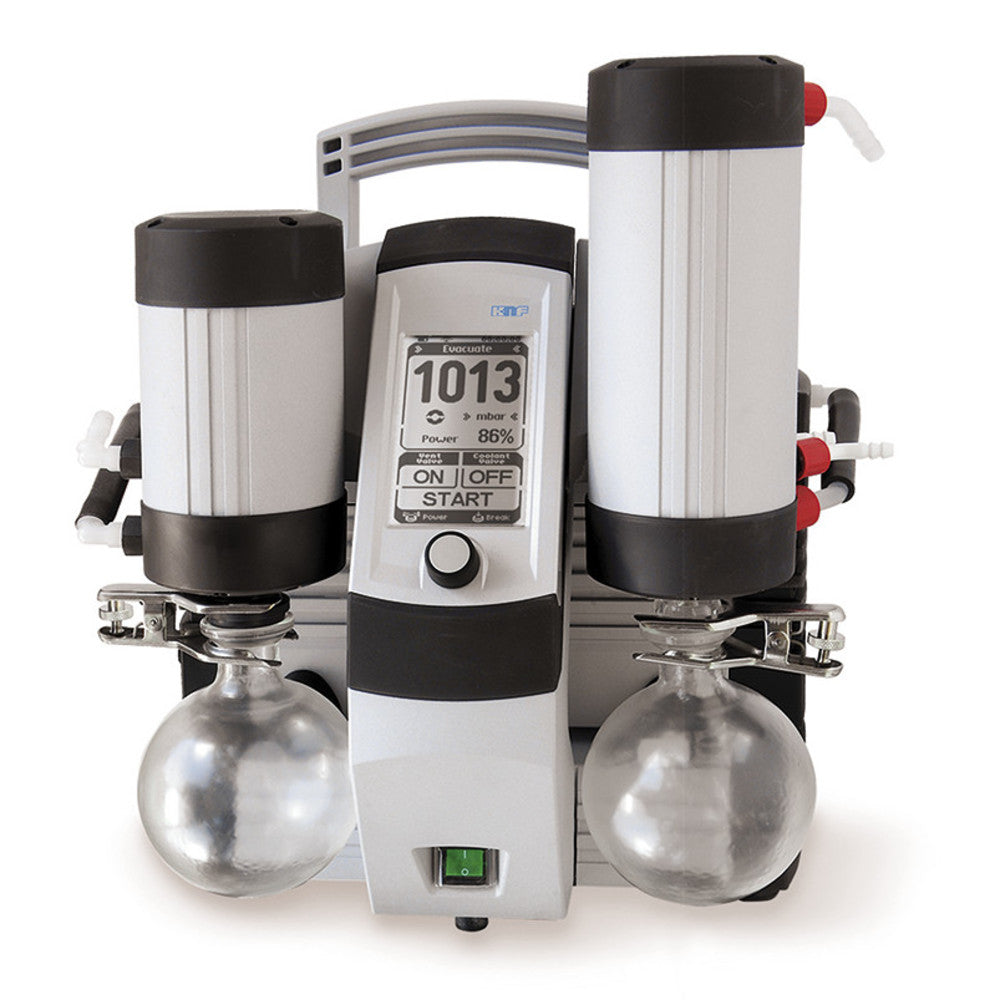

SC 920 G vacuum pump system, delivery rate max. 21 l/min, incl. 2 receiving flasks, 2 flask clamps, USB cable for connecting to a PC and software (compatible with Windows).
Chemical-resistant, suitable for aggressive and corrosive gases and vapours.
- Control optionally via operating unit or PC
- LCD screen displays actual and target values
- Automatic boiling point detection and boiling point tracking using integrated ramp function
- High recovery rates even with solvents that have very low boiling points
- Delivery rate (in %) can be adjusted via speed
- Integrated gas ballast valve reduces condensate formation within the pump head
- Quiet operation
Control panel:
- Display: LCDOperation: touchscreen/rotary pushbuttonDimensions (W x H x D): 90 x 205 x 55 mm
Delivery incl. 2x collecting flasks (each 500 ml, made of glass, coated), 2x flask clamps, USB cable for connecting to a PC and software (compatible with Windows).
Technical Information
| Type | SC 920 G |
| System | SC 920 G |
| Suction capacity (l/min) | 20.0 |
| End vacuum (abs.) | 2 mbar |
| End vacuum abs. with gas ballast | 5 mbar |
| Connection | for hose inner Ø 10 mm |
| Ambient temperature | +5 - +40 °C |
| Materials in contact with media | pump head: PPS diaphragms: PTFE-coated valves: FFPM seals: FPM hose nozzles: PVDF |
| Port | Mini USB |
| W x D x H | 366 x 294 x 423 mm |
| Weight | 15.2 kg |
| Mains connection | 100-240 V, 50/60 Hz |
| ROTH for Future | yes |
