Description

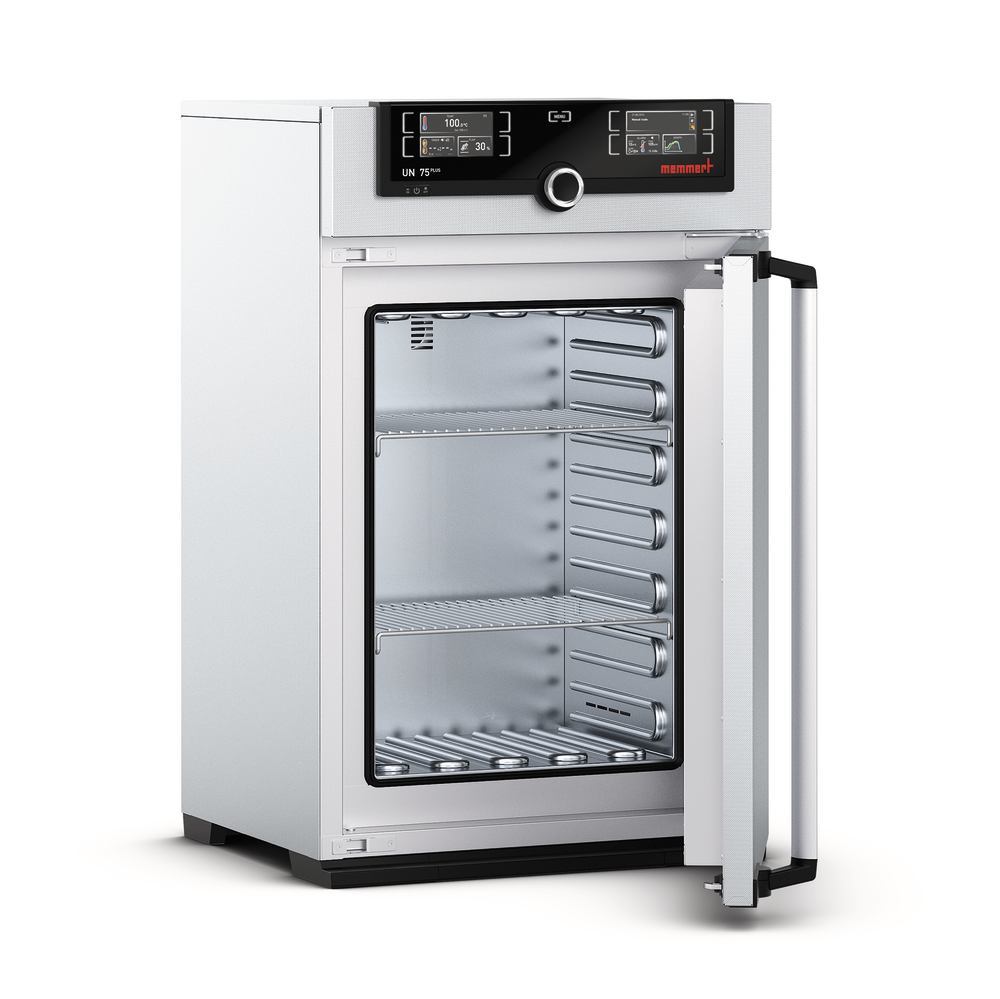

Univ. warming a. drying cabinet UNplus75, 74 l, max.300 °C, 2 graph.TFT-display, nat. convection, incl. 2 stainl.steel grids
Models: UN, UNplus, UF and UFplus
General features:
- Stainless steel interior (1.4301)
- Fully insulated stainless steel door (two-wing from size 450 upwards)
- Fresh air supply by electronically adjustable exhaust air flap
- Textured stainless steel housing
- Model sizes 450 and 750 with moveable and lockable rollers
- Interior depth minus 39 mm for devices with forced air circulation
- Depth plus door handle 56 mm
- Incl. factory calibration certificate valid for +160 °C
- Power supply for models 30 to 260: 230 V, 50/60 Hz, power supply for models 450 and 750: 400 V and 3 x 220 V, n/a 50/60 Hz
Other features:
- German, English, French and Spanish language options
- Digital timer (adjustable from 1 min to 99 d, 23 h) or continuous operation
- “SetpointWAIT” function - process time does not start until the target temperature is reached
- Operating temperature range from 5 °C above room temperature to 300 °C Setting temperature from 20 to 300 °CSetting accuracy up to 99.9 °C: 0.1 K, from 100 °C: 0.5 K
- Two graphical TFT displays with touchscreen for operation and displaying temperature, program runtime, air damper position and graphical display of programme flow
- Integrated data logger with 10-year memory
- Display of recorded log data (max. 10,000 values correspond to approx. 1 week) directly on the device
- Application-specific correction of the heat output distribution between the upper and lower heating groups within an adjustment range from -50% to +50%
- With Ethernet communication port for reading out log data as well as for transmitting and launching programs and online logging
- Definition of individual min./max. values for protection against excessive/insufficient temperatures
- USB port for installing programs and reading out the data logger incl. software (to create ramp programs and weekly programs)
Delivery incl. stainless steel grating (models 30 and 55: 1 grate, models 75 to 750: 2 grates). Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Technical Information
| Type | UNplus 75 |
| Vol. | 74 l |
| Operating temperature | from 5 °C above room temperature to 300 °C |
| Inner width | 400 mm |
| Inner height | 560 mm |
| Inner depth | 330 mm |
| Outer width | 585 mm |
| Outer height | 947 mm |
| Outer depth | 541 mm |
| Max. removable shelves | 6 |
| Power consumption | 2500 W |
| Temporal temp. variance | <±0,5 °C |
| Spatial temp. deviation | <±5,0 °C |
| Weight | 65 kg |
| Mains connection | 230 V, 50/60 Hz |
