Description

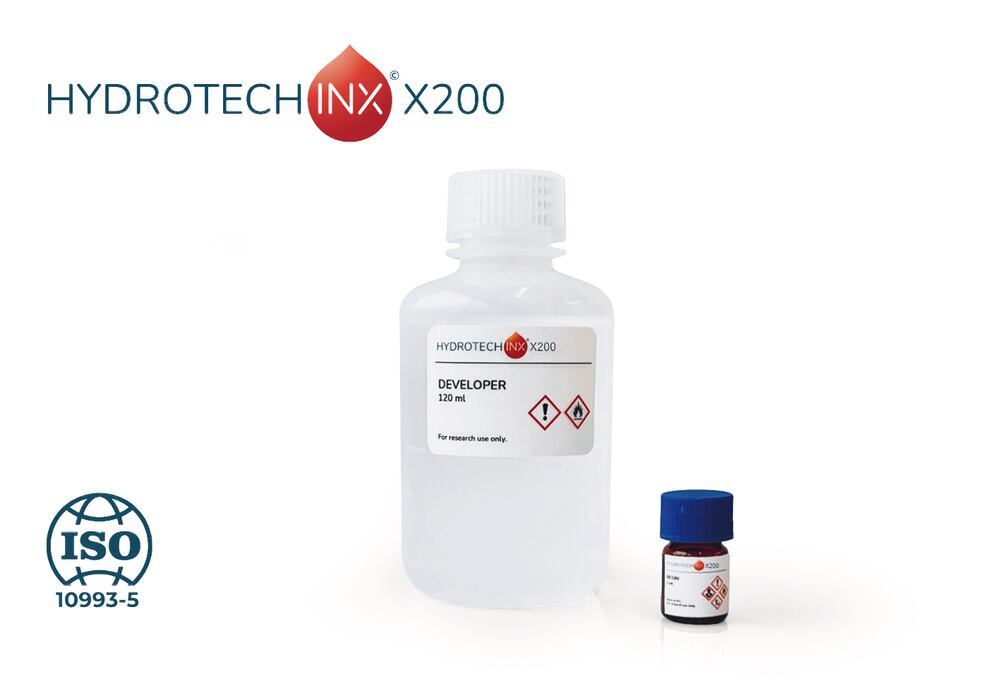

HYDROTECH INX X200, Kit, for Multiphoton Lithography (MPL), Density (D) ~1 g/cm³, Flash point (flp) 13 °C, Boiling point (bp) 78 °C, Storage temp. +2 to +8 °C, UN-Nr. 3316
HYDROTECH INX© X200 is a synthetic resin family for the generation of robust hydrogel microstructures via Multiphoton Lithography (MPL) technology.HYDROTECH INX© X200 is the first biocompatible hydrogel resin enabling two-photon polymerization induced printing from the micro- to the meso- scale. It is a ready-to-use liquid synthetic resin for the fabrication of bioinert hydrogel structures with ISO 10993-5 certified biocompatibility.The highly reactive strong and flexible material enables printing of macrostructures with micrometer precision, which makes it suitable for a whole range of biologicial applications.
- Upnano NanoOne
- Upnano NanoOneBio
- Nanoscribe Photonic Professional GT2
- Nanoscribe Quantum X Bio
- Further on request
- Vial of resin (4 ml)
- Large vial of developer (120 ml)
- Custom-made BIO INX floater
- Synthetic hydrogel
- Resolution in the nm to mm range
- Very robust and flexible
- Bioinert
- Optimal for organ-on-chip applications
| Printing technology | Multiphoton Lithography (MPL) |
| Appearance | Orange liquid |
| Material | synthetic |
| Refractive index | 1.46 - 1.48 |
| Viscosity | 1 - 10 Pa·s |
| Storage Modulus after UV curing | 500 - 1200 kPa |
| Youngs modulus | 3 - 4 MPa |
| Pack Qty. | 1 kit |
| Application | No cell interaction |
| Biocompatibility | ISO 10993-5 |
Compliance & Safety Information
Danger
Hazard Statements (H-Phrases)
Precautionary Statements (P-Phrases)
