Description

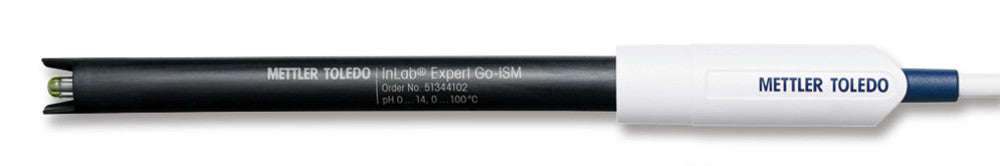

InLab® pH single-rod measuring cell, Expert Go-ISM®, incl. fixed cable
High-quality pH single-rod measuring cells for temperature-compensated measurements.
Thanks to the Intelligent Sensor Management (ISM®) system, all important data is stored in the sensor and automatically sent to ISM®-compatible measuring devices.
Wide range of applications including emulsions, suspensions, wastewater and solutions containing proteins and sulphides.With IP67 protection for waterproof measurements with FiveGo™, Seven2Go™ and SevenGo Duo™ measuring devices.PEEK shaft with excellent chemical and mechanical resistance for extreme strain.
Delivery incl. fixed cable (length 1.8 m).
Technical Information
| Type | InLab® Expert Go-ISM® |
| Parameters | pH temperature |
| pH range | 0 to 14 |
| Operating temperature | 0 to +100 °C |
| Diaphragm | perforated |
| Reference system | ARGENTHAL™ with Ag+ ion trap |
| Electrolyte | polymer |
| Maintenance-free | yes |
| Storage solution | 3 mol/l KCl |
| Shaft length | 120 mm |
| Ø Shaft | 12 mm |
| Shaft material | PEEK |
| Temperature sensor | NTC 30 kΩ |
| ISM Technology | yes |
| IP rating | 67 |
| Connection | BNC (pH), Cinch (°C) |
