Beschrijving

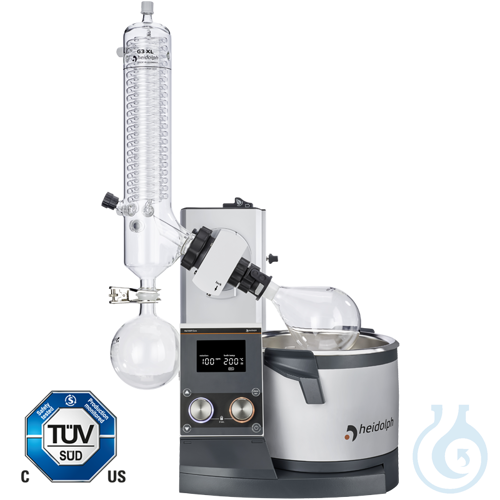

Hei-VAP Core ML G3 XL is a rotary evaporator built around a deliberately reduced operating concept that keeps rotation speed and heating-bath temperature immediately accessible. A clear digital display shows actual and set values, while two separate rotary knobs with dynamic control support fast large steps or slow, precise fine adjustment of the set points. A lock function prevents unintentional changes, and LED rings make active functions easy to recognise even from a distance. Immersion depth is adjustable up to 155 mm and the evaporator-flask inclination angle can be set between 20° and 80°. Standby functionality and a residual-heat warning for heating-bath temperatures above 50 °C add everyday laboratory safety. This motor-lift configuration is fitted with a G3 XL vertical condenser providing 2.200 cm² cooling surface for high evaporation performance; the standby button stops all functions and lifts the flask out of the bath. Supplied with a UK cable as a complete unit from manufacturer Heidolph, the instrument is intended for routine solvent evaporation and concentration work in research and quality-control laboratories.
This article is part of Rotary evaporators, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Lift type: Motor lift
- Condenser: G3 XL vertical, 2.200 cm² cooling surface
- Immersion depth: up to 155 mm
- Inclination angle: 20° to 80°
- EAN: 4255661406715
- Technical Information Sheet:
