Beschrijving

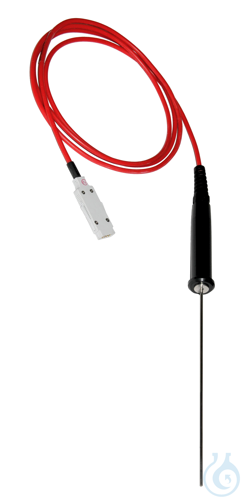

Immersion resistance thermometer Pt100 Ø 3 × 150 mm is a handheld probe for accurate laboratory temperature measurement. The sensor is a Pt100 element to DIN EN 60751 Class A in 4-wire configuration, giving stable readings with fine resolution when used with compatible instruments. A stainless-steel sheathed measuring section of 3 mm diameter and 150 mm nominal length is fixed to a plastic handle, with a permanently attached connection cable of 4 × 0,22 mm², Teflon/silicone insulated and 2 m long; cable exit is protected by a bend relief. Operating range is −50 °C to +200 °C. Connection is via a Physics plug offering 0,01 °C resolution and suitability for PHYSICS 100 and PHYSICS 300 instruments. This immersion thermometer assembly (type WT-MI-303-HG) from manufacturer Schneider is intended for dipping measurements in liquids and process media where Class A Pt100 performance, robust sheathing, and a ready-to-use handle-and-cable design are required in routine laboratory and technical applications.
This article belongs on Temperature probes & sensors, in Temperature measurement.
Key features
- Pack size: 1 pc(s)
- Sensor type: Pt100
- Accuracy class: DIN EN 60751 Class A, 4-wire
- Sheath diameter: 3 mm
- Nominal length: 150 mm
- EAN: 4058072027032
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Temperature probe, Pt100 Ø 3 x 150 mm
What is this article?
Temperature probe, Pt100 Ø 3 x 150 mm is the article on this page. Luminix Health distributes Schneider for laboratory use. It sits in Temperature probes & sensors, inside Temperature measurement, in Instrumenten.
A temperature probe is the sensor, Pt100, thermocouple or thermistor, that a meter or a logger reads. The probe, not the display, is what is calibrated. The sheath material and the response time matter in a liquid versus a block.
A thermometer reports a temperature. A liquid-in-glass thermometer is a calibrated column. A digital thermometer is a sensor and a display, and the sensor, not the display, is what is calibrated. An infrared thermometer reads a surface and depends on emissivity. A data logger stores the reading over time. Without a stated uncertainty and a calibration point, the number is only an indication. The scale is maintained by the BIPM and compared by EURAMET. Accreditation is BELAC.
