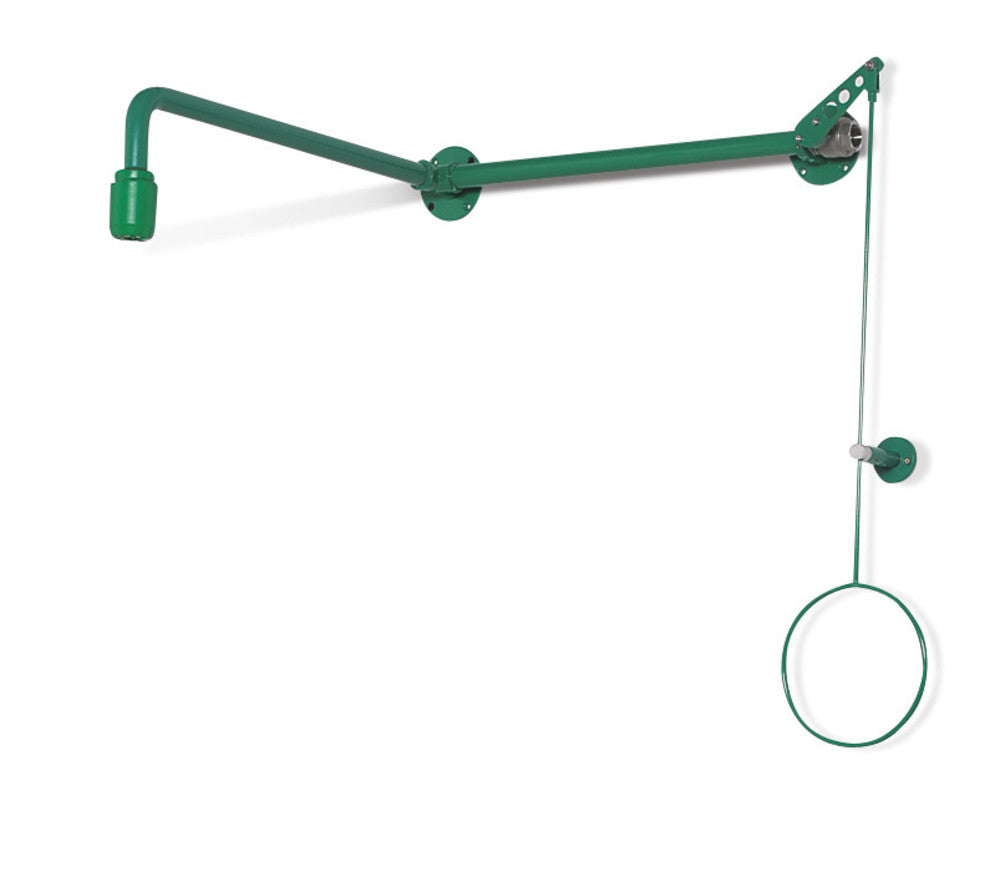

Body safety shower for surface-mounted over-door installation

ClassicLine body safety shower for over-door mounting surface-mounted
- Ball valve with pull-rod actuation on wall flange, can be mounted either to the right or left of the door, made of stainless steel, DIN-DVGW tested and approved, 3/4-inch female water connection
- Pull rod with ring handle made of steel, chemical-resistant green powder-coated, length 700 mm
- Guide holder for pull rod made of steel, chemical-resistant green powder-coated
- Connecting tube 3/4-inch stainless steel, chemical resistant green powder coated, length 500 mm
- Wall flange with 4 fixing holes made of stainless steel, chemical-resistant, powder-coated green
- 3/4-inch stainless steel wall shower arm, chemical-resistant, green powder-coated, projection 525 mm
- Integrated automatic flow regulator 50 litres / minute for a standard-compliant spray pattern at a specified working range of 1.5 to 3 bar flow pressure
- High-performance shower head made of chemical-resistant plastic, black, with improved spray pattern, corrosion-resistant, largely free of limescale and maintenance, very robust, self-draining
- Information sign for body safety shower in accordance with DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC film, dimensions 150 x 150 mm, recognition range 15 metres
- Mounting height 2345 mm (± 100 mm)
- according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
- according to ANSI Z358.1-2014, DIN EN 15154-1:2006 and DIN EN 15154-5:2019
- DIN-DVGW tested and approved
