Description

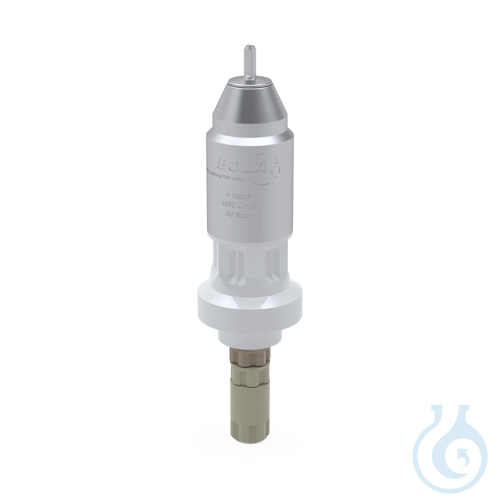

BOLA Magnetic Stirrer Heads (P-MRK) with Flat Flange Ideal stirrer head for PTFE-jacketed stirrer shafts from BOLA. Consisting of capsuled drive shaft (stainless steel) with ball bearings, rotor and lower bearing made of PEEK-Compound and a borosilicate glass receiver. Requires little space due to compact construction. No leakage or memory effects due to non-porous, welded rotor. Compression fittings made of PEEK-Compound for safe fixing of stirrer shaft and optimum power transmission. Suitable for flat flanges of Duran (former Schott AG), sealing to be made with a gasket of your choice. Square size 6 mm for accepting an agitator or a stirrer coupling. Abmessungen: For stirrer shaft dia. dia.(d) mm 10 Height (H) mm 160 Flat Flange DN 40 Insertion length of shaft (L2) max. mm 95 Drive shaft O.D. (D) mm 50
