Beschreibung

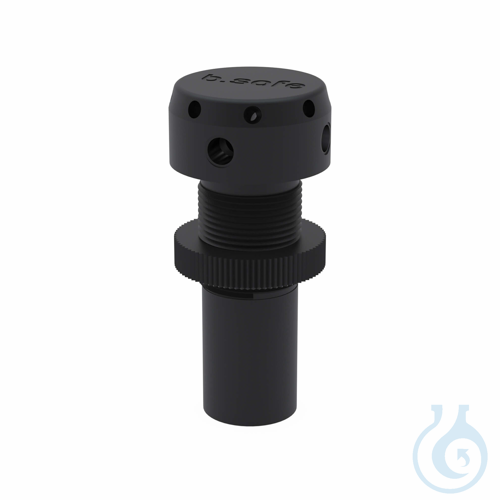

b.safe Desktop Mount Multiport IV for Waste Pipes Made of static dissipative PE-EX, suitable for tiles with a thickness of 10 to 35 mm, easy fixing by counter nut. Low installation height due to connections at the sides, all threads are inclined to provide additional sloping and connection of tubes without bending. Connections at upper side: 4x2 capillaries (female thread UNF 1/4“) to connect capillaries with b.safe fittings, 4x1 tube connection (female thread NPT 1/8“) for hose connectors. Fittings and hose connectors are not included in the scope of delivery. Connections at bottom: O.D. 32 mm for direct connection with rigid b.safe Pipe Connections, can be shortened if necessary. Abmessungen: Number of capillary connectors 8x UNF 1/4 No. of hose connections 4x NPT 1/8'' Connection bottom Außen-Ø / O.D. 32 mm Total length mm 268 ''
