Description

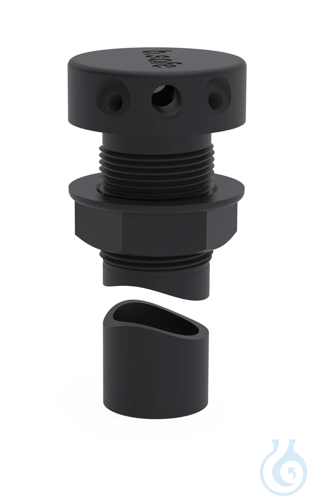

b.safe Starter Set Multiport II for Waste Pipes Made of static dissipative PE-EX, suitable for tiles with a thickness of 10 to 35 mm and bore dia. 35 mm, easy fixing with counter nut. Low installation height due to connections at the sides, all threads are inclined to provide additional sloping and connection of tubings without bending. Connections at upper side: 4x capillary connection (female thread UNF 1/4“) incl. b.safe Fittings to connect capillaries with O.D. 1,6/2,2/3,2 mm , 2x tube connection (female thread NPT 1/8“) incl. b.safe Hose Connector for tubing with I.D. 6,5-8 mm. Connections at bottom: O.D. 32 mm for direct connection with rigid b.safe Pipe Connections, can be shortened if necessary. Abmessungen: Description Starter Set Multiport II für Waste Pipes Number of capillary connectors 4x UNF 1/4 No. of hose connections 2x NPT 1/8'' Connection bottom Außen-Ø / O.D. 32 mm Total length mm 260 ''
