Description

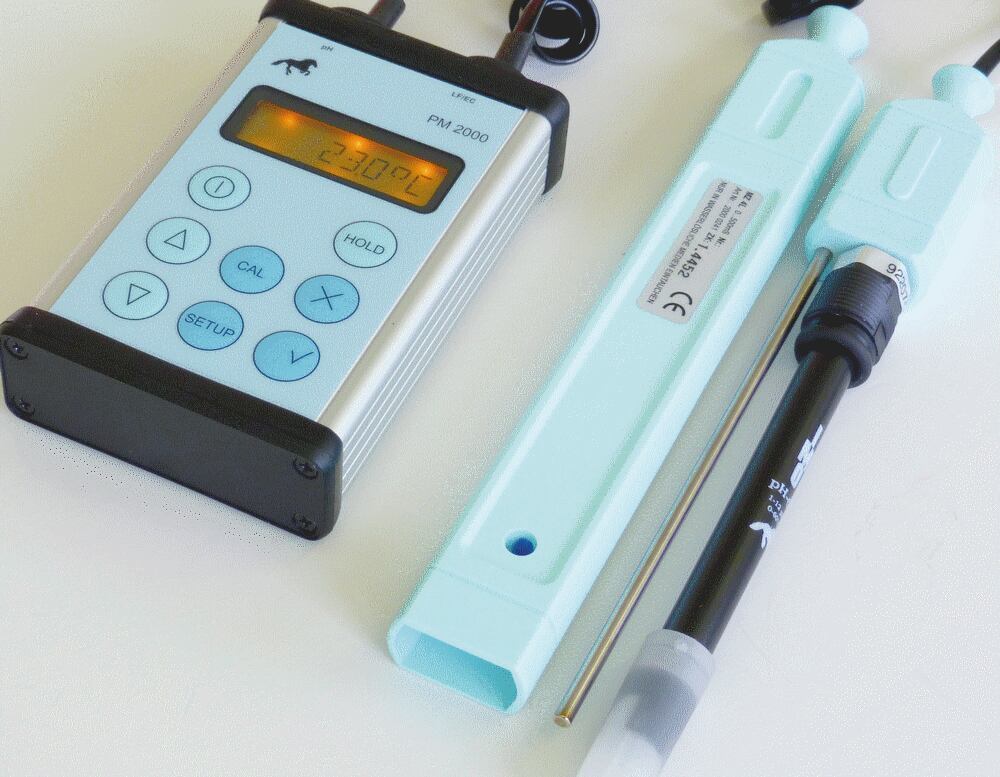

Combined measuring devices PM 2000 set, incl. pH/Redox-measuring pre-amplifier, with temperature probe, pH-electrode pH62/A7, conductivity measuring cell, transport case and battery. Contains LITHIUM-ION CELLS. Does not require labeling according to SV 188, ADR., UN-Nr. 3091
For measuring pH, redox, conductivity and temperature.
- Automatic sensor detection
- Robust, coated aluminium housing
- Automatic pH-calibration
- Zero-point can be set separately for redox electrodes
Delivery incl. pH/redox pre-amplifier with temperature gauge, pH single-rod measuring cell pH 62/AS7, conductivity probe with an integrated temperature gauge, batteries. Without redox single-rod measuring cell, please order separately.
Technical Information
| Type | PM 200 set |
| Parameters | pH conductivity temperature |
| Channels | 2 |
| Sensor | 62/AS7 (pH), MZ 4L (EC) |
| pH measuring range | 0 to 14 |
| pH resolution | 0,01 pH |
| pH accuracy | ±0.01 pH |
| pH temp. compensation | automatic: 0 to +100 °C |
| Voltage measuring range | -1000 to +1000 mV |
| Voltage resolution | 1 mV |
| Conductivity measuring range | 0 µS/cm to 500 mS/cm |
| Conductivity resolution | 0.01 μS/cm 1.0 mS/cm |
| Conductivity accuracy | ±2% (up to 200 mS) ±4% (up to 500 mS) |
| Reference temperature conductivity | 20 / 25 °C |
| Temperature coefficient | 0-3,9 % |
| Temperature measuring range | -50 to +150 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.2 °C |
| IP rating | 65 |
| L x W x H | 138 x 85 x 35 mm |
| Weight | 350 g |
| Power supply | 3x lithium batteries Mignon 1.5 V |
