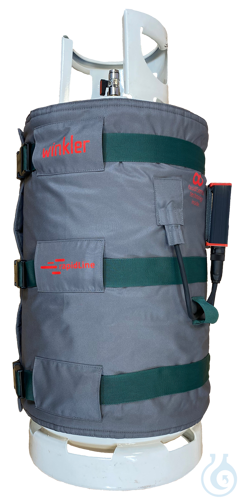

Gas bottle heater P-Series rapidLine; Operating voltage 230 VAC; Appliance class I;
Nominal power 450 W; Max. admissible operating temperature 50 °C; for gas bottles 20L
Operation with a temperature controller is always required.
· Outer sheath: water-repellent polyester fabric
· Fastening: adjustable tension straps with buckles
· suitable for diameter: 230 mm
· Height: 850 mm
· For operation the temperature controller W3071-5217 (WRL430PW-0050WIN9) is necessary.
· An EX version is also available.
Heater equipped with special sensor to trace the temperature close to the gas-bottle.
2nd sensor integrated as limiter sensor.
The gas bottle heater offered by us are manufactured in protection class IP 54.
In case of outdoor installation, we recommend that they be equipped with suitable
protection against direct environmental influences (e.g. protective roof).
old item number: WOBP0020-230ZP230-0850MS03
