Description

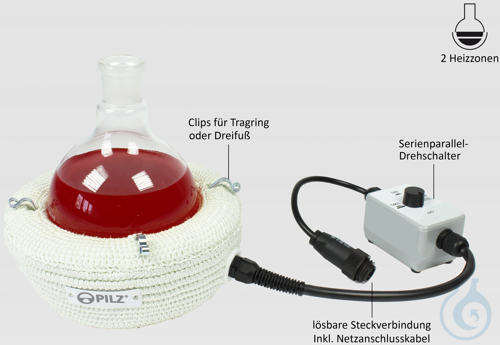

Heating mantle PILZ® Series G2H -Classic Line- with increased power and operating temperature; Operating voltage 230 VAC;
Nominal Power 750 W; Max. admissible operating temperature 900°C; For round bottom flask size 1.000 ml Ø 131mm
· hand crocheted heating mantles made of glass silk for round bottom flask for optimal heat transfer
· same design as G2, but with a maximum permissible temperature of 900°C
Device features
· with rotary switch
· selectable power (OFF/25/50/100%)
->25% = heating zone 1+2 serially connected
->50% = lower heating zone
->100% = heating zone 1+2 parallel connected
· with base opening Ø 62mm
· detachable plug-in connection (cable lenght 0.50 m)
· including personal protection plug with RCD function
and cable with Schuko plug type E/F (cable length 1.00 m)
old item number: WHG2HXXX-230XX900-001000DE
