Description

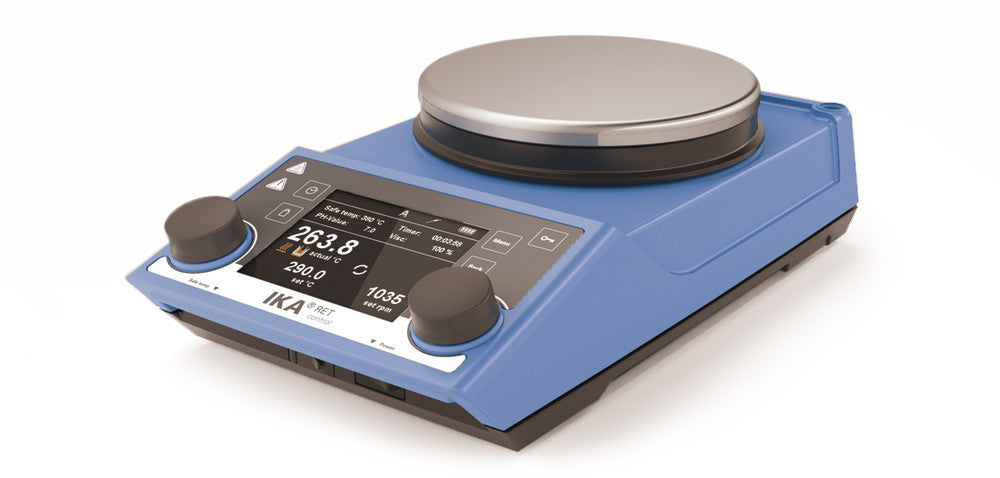

RET control-visc safety magnetic stirrer, stainless steel hot plate, Incl. stainless steel temperature probe Pt 100.50 and protective hood type H 104
Type:
- Time and speed indication via digital display
- Clear TFT display for easy navigation through menus
- Temperature display resolution 0.01 °C
- Can be connected to Pt 100.70 temperature measuring sensor
- Integrated contact thermometer with full functionality
- Timer and countdown function
- Detached magnet detection, intermittent operation
- USB and RS 232 interface to control and document the magnetic stirrer
pH function:
- With integrated pH electrode connection (BNC socket)
- Measuring range 0 to 14 pH; resolution 0.01 pH; accuracy ±0.1 pH
- Delivery without pH single-rod measuring cell (please order separately; a large selection of pH electrodes with BNC connectors can be found in the "Measuring devices" section)
Integrated weighing function:
- Max. weighing range 5000 g, readability 1 g
- Linearity ±1 g
Delivery incl. PT 100.70 stainless steel temperature gauge and type H 104 protective hood.
Technical Information
| Type | RET control-visc |
| Version | with stainless steel hot plate |
| Number of stirring points | 1 |
| Max. stirring capacity (H2O) | 20 l |
| Speed range | 50 to 1700 rpm |
| Speed display | TFT |
| Motor power input | 16 W |
| Motor power output | 9 W |
| Hotplate material | stainless steel hot plate |
| Operating temperature | Room temperature to +340 °C |
| Temperature display | TFT |
| Setting accuracy | ±0,1 K |
| Control accuracy with sensor | ±0,2 K |
| Heating output | 600 W |
| Footprint | Ø 135 mm |
| W x D x H, total | 160 x 270 x 85 mm |
| Mains connection | 220-240 V, 50/60 Hz |
