Beschreibung

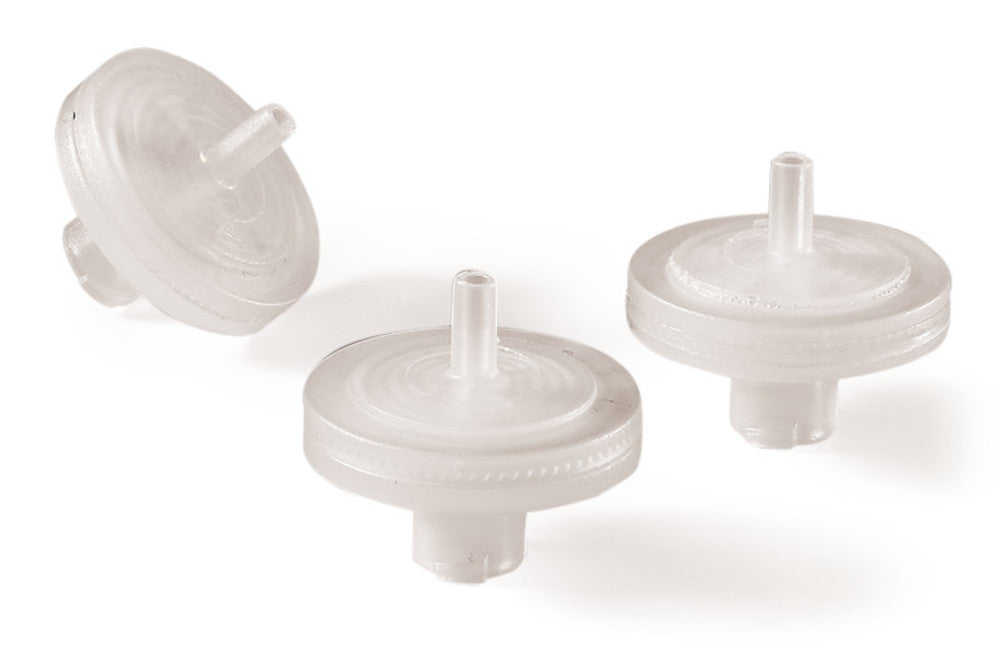

Rotilabo® Mini-Tip syringe filter, Ø 15 mm, PTFE-membrane, 0.2 µm
Non-sterile
With housing made of PP, ultrasonically welded, colourless.
Hydrophobic membrane for the filtration of aggressive chemicals, acids and non-polar solvents. Low flow resistance to gases, can therefore also be used for air and gas filtration (e.g. for aeration and ventilation work and for sterile gas exchange).
Not a medical device / Not an IVD product
Technical Information
| Pore size | 0,2 µm |
| Sterility | Non-sterile |
| Ø membrane | 15 mm |
| Ø housing | 20 mm |
| Membrane material | hydrophobic PTFE |
| Housing material | PP |
| Sample volume | 1–10 ml |
| Dead volume | <25 µl |
| Total filter volume | 0.335 ml |
| Filtration area | 1.77 cm² |
| Max. operating pressure | 7 bar |
| Inlet connection | Luer lock connector |
| Outlet connection | Mini-Tip |
