Description

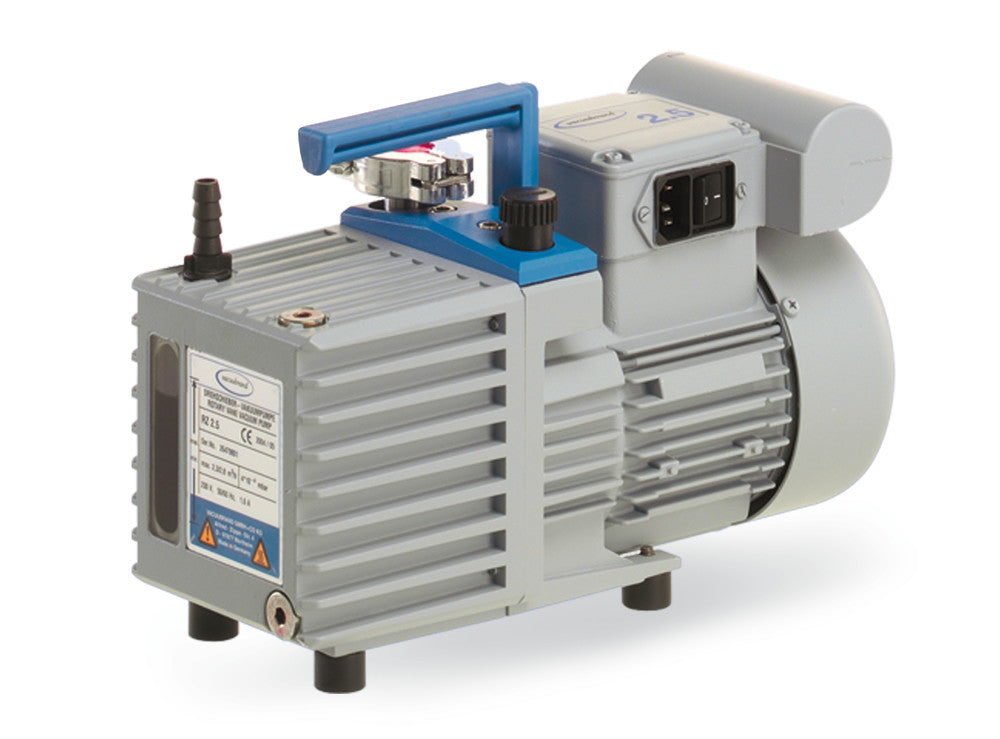

Slide vane XS vacuum pump, RE 2.5, 1-stage, 2.3/2.8 m³/h, 0.18 kW, incl. oil-filled pump, tension and centring ring for suction connection
For pressure ranges up to 10-3 mbar.
Advantages:
- High suction capacity, even at low ultimate pressure
- High water vapour resistance (with 40 mbar gas ballast)
- Active corrosion protection against ingress of corrosive gases and oil components at a standstill through vacuum-tight closed oil circuit
- New circulation lubrication system
- Compact design and low weight
- Starts reliably even at low temperatures
- Long oil change intervals thanks to high usable oil volume
- Easy maintenance thanks to telescopic design
Delivery incl. oil filling, thermal motor circuit breaker, power cord (length: 2 m), clamping and centring ring for suction piece.
Technical Information
| Type | RE 2.5 |
| Steps | 1 |
| Suction capacity (l/min) | 38.0 |
| Suction capacity (m³/h) | 2.3 |
| End vacuum (abs.) | 3 x 10-1 mbar |
| End vacuum abs. with gas ballast | 8 x 10-1 mbar |
| Media temperature | +10 - +40 °C (>100 mbar)0 - +60 °C (<100 mbar) °C |
| Inlet connection | DN 16 small flange |
| Outlet connection | for hose inner Ø 10 mm |
| Oil filling | 0,4-1 l |
| Motor power | 100 W |
| Ambient temperature | +12 - +40 °C |
| IP rating | 40 |
| W x D x H | 156 x 390 x 240 mm |
| Weight | 12,8 kg |
| Mains connection | 200-230 V, 50/60 Hz |
