Description

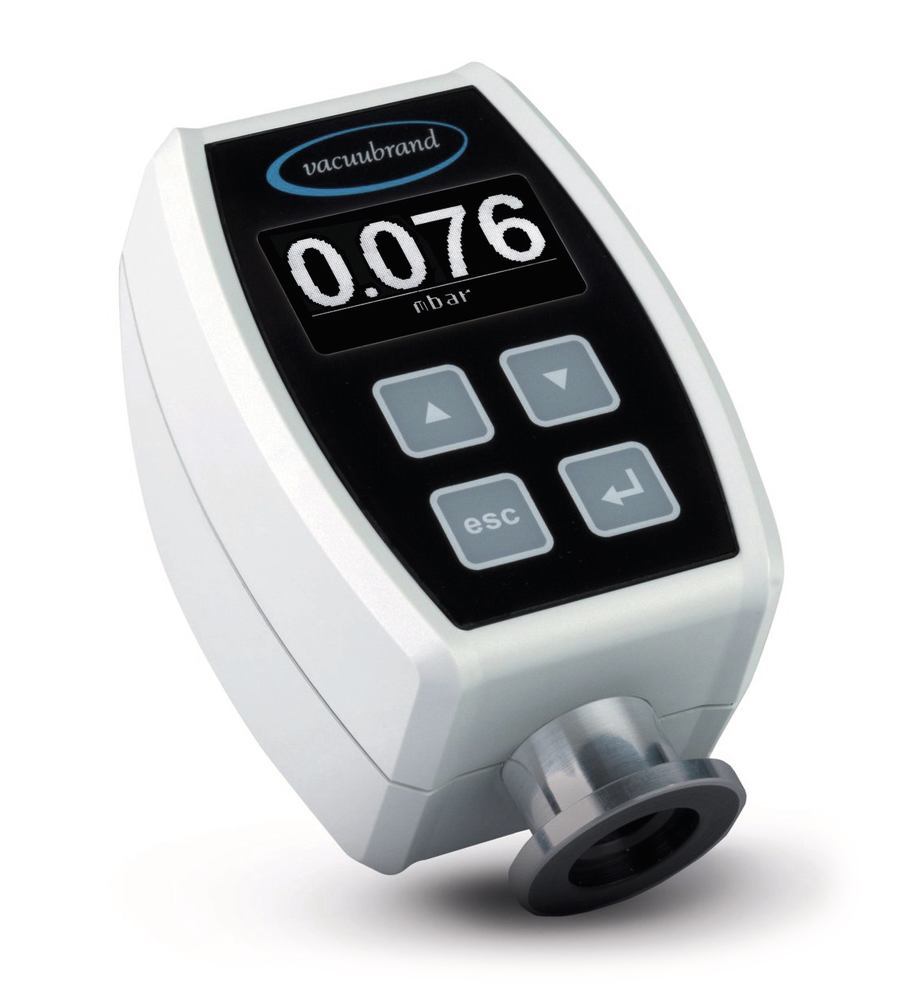

Vacuum meter, VACUU VIEW Extended f. co. and fi. vac., Incl. DN 6/10 mm hose nozzle and plug-in power supply.
For monitoring vacuum processes with particularly high precision.
- Lit pressure display makes it easy to read the measured values
- Display with menu navigation, simple adjustment of display options, e.g. pressure unit
- Compact design with integrated sensors; is practical to position for lab and process set-ups
- Sensor chemical-resistant for increased service life, even for aggressive applications
- Stable plastic housing with good chemical resistance
- Switchable pressure display (mbar, torr, hPa)
A chemical-resistant combination comprising a ceramic membrane sensor and ceramic jacketed Pirani sensor for measurements in the coarse and fine vacuum ranges.
Delivery incl. DN 6/10 mm hose nozzle and plug-in power supply.
Technical Information
| Type | VACUU VIEW Extended |
| Measuring range | 1100-0.001 mbar |
| Resolution | 1 mbar (1100-10 mbar) 0.1 mbar (10-1 mbar) 0.01 mbar (1-0.1 mbar) 0.001 mbar (0.1-0.001 mbar) |
| Measuring principle | capacitive and acc. to PIRANI |
| Accuracy | ±3 mbar (1100-5 mbar) ±15% from the measured value (5-0.01 mbar) |
| Connection | KF DN 16 small flange DN 6/10 mm stepped hose nozzle |
| Ambient temperature | +10 - +40 °C |
| L x W x H | 50 x 62 x 103 mm |
| Weight | 190 g |
| Mains connection | 100-230 V, 50/60 Hz |
