Description

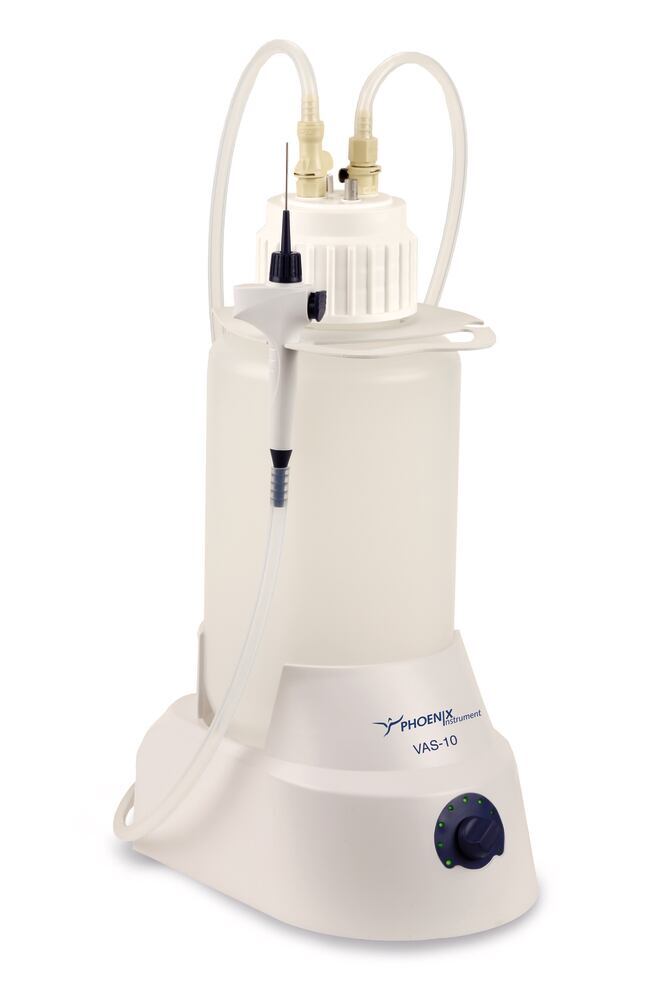

VAS-10 extraction system, 8 l/min, 400 mbar, Incl. 4 l PP collecting bottle with quick couplings, extraction handle, various attachments and adapters, power supply unit.
Vacuum continuously adjustable. Extraction handle flexibly adjustable at the touch of a button or adjustable in two stages in continuous operation. Hydrophobic filter prevents contamination by aerosols and liquids. Quiet, brushless motor.
Accessories for extraction handle:
- One single-channel stainless steel tip each, L 60/L 140 mm, Ø 1.5 mm
- One single-channel stainless steel tip each, L 60/L 140 mm, Ø 2.5 mm
- One adapter each for single-channel stainless steel tip to accommodate 200 μl/1000 μl tips
- 8-channel stainless steel tip, L 50 mm, Ø 1.5 mm
- Adapter for 8-channel stainless steel tip to accommodate 200 μl-tips
Complete extraction system with 4 l PP collecting bottle. Lid with self-closing quick couplings for tight sealing of the collecting bottle after the hoses are disconnected. Non-contact fill level sensor for electronic monitoring of the fluid level in the collecting bottle.
Delivery incl. 4 l PP collecting bottle with quick couplings, extraction handle, various attachments and adapters, power supply unit.
Technical Information
| Type | VAS-10 |
| Bottle volume | 4000 ml |
| Suction capacity (l/min) | 8,0 |
| End vacuum (abs.) | 400 mbar |
| Ambient temperature | +4 - +40 °C |
| W x D x H | 180 x 240 x 450 mm |
| Weight | 3 kg |
| Mains connection | 100-240 V, 50/60 Hz |
