Beschreibung

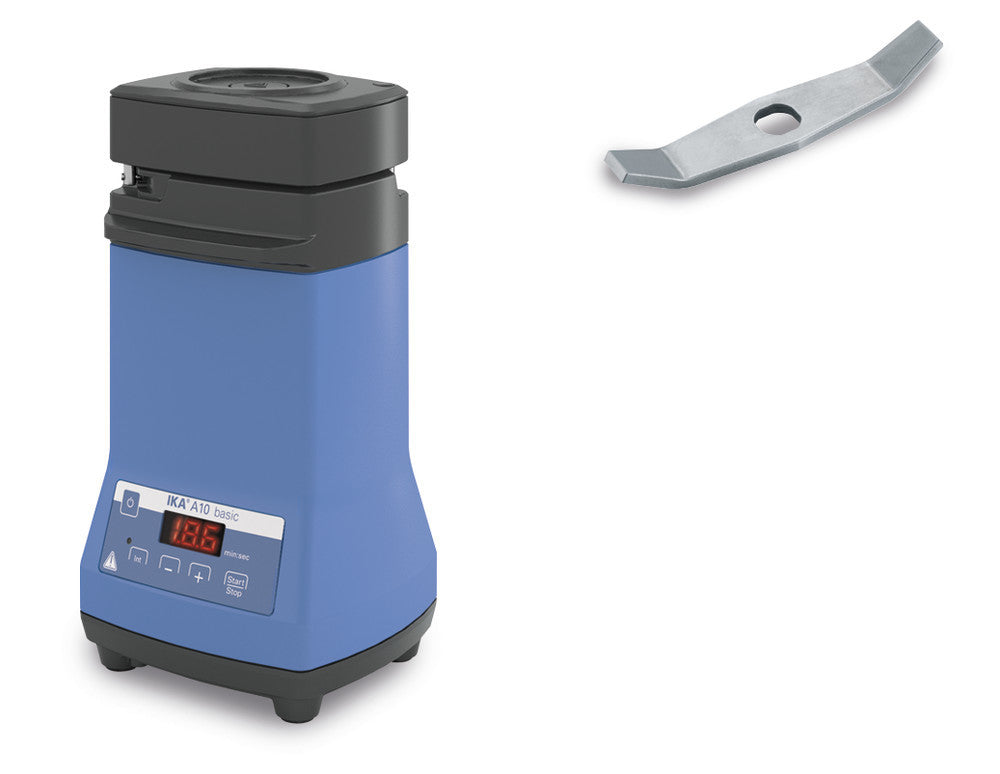

A10 basic analys. mill, 50ml usable vol., 25000/min, W130 x D145 x H250 mm, incl. A 10.1 stainless steel beater and A 10.4 grinding chamber reducer
For shredding hard, brittle, but also soft and fibrous materials. Integrated cooling water connections (for hoses with an inner Ø 8 mm). Replaceable stainless steel beater. Operation only possible with closed lid.
- Digital timer (can be set to between 1 s and 5 min) that shows the comminuting time
- Interval function (if the timer function has been activated, the equipment runs for 15 s and then stops for 1 s, repeating this pattern until the set time has elapsed)
- Max. processing grain size:6 mm for impact grinding10 mm for cutting grinding
- Max. switch-on duration: 5 min ON / 10 min OFF
Delivery incl. stainless steel beater type A 10.1 (stainless steel 1.4034) suitable for most brittle materials up to a Mohs hardness of 5 and A 10.4 grinding chamber reducer (stainless steel 1.4301) for small sample material volumes.
Technical Information
| Type | A 10 basic |
| Usable volume | 50 ml |
| Motor power input | 300 W |
| Motor power output | 240 W |
| Max. duty time | short-term operation (KB 5/10): 5 min ON / 10 min OFF |
| Maximum speed | 25000 rpm |
| Max. circumferential speed | 70 m/s |
| Grinding chamber can be cooled by | Water: yesDry ice: yesLiquid nitrogen: no |
| W x D x H, total | 130 x 145 x 250 mm |
| Weight | 2.9 kg |
| Mains connection | 220-240 V, 50/60 Hz |
