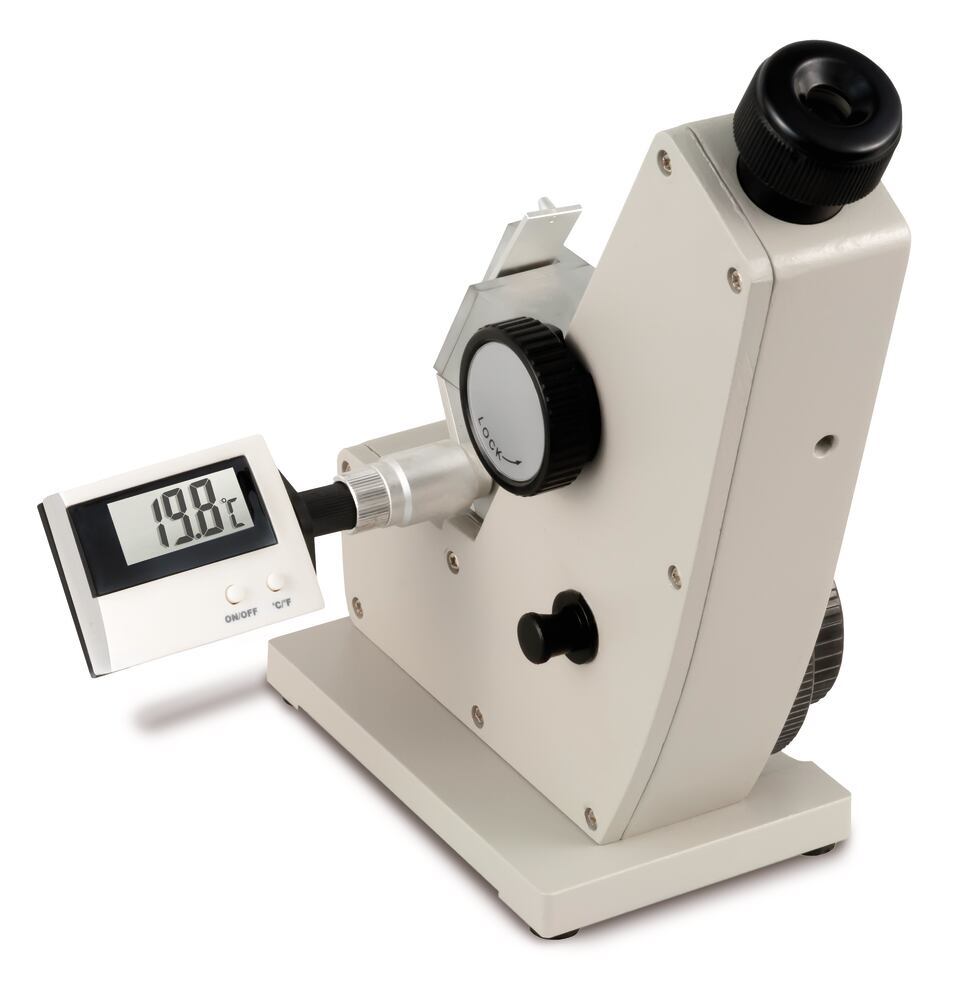

Abbe refractometers, PCE-ABBE-REF2, Incl. thermometer, reference block and contact liquid
For measuring the refractive index and sugar content of translucent liquids, dispersions, emulsions or other substances (pastes, solids).
Usage: measurement and analysis of fats, oils, paints, varnishes, foodstuffs, chemical substances, alcohol and solvents.
- Easy-to-use, rugged design
- Eyepiece with dioptre adjustment
- Scale refers to +20 °C
- Includes thermometer for reading the measuring temperature
- Calibrated with distilled water or calibration block and special contact fluid
- Can be connected to a water circulation system for temperature control of measurement prism and illumination prism (outer Ø of connecting piece: 9.5 mm)
Delivery incl. thermometer, reference block and contact liquid.
Technical Information
| Type | PCE-ABBE-REF2 |
| Application | universal, for extra large measuring ranges |
| Scale | refractive index, Brix |
| Measuring range | 1.3000-1.700 nD, 0-95% (Brix) |
| Resolution | 0.005 nD, 0.25% (Brix) |
| Accuracy | ±0.002 nD, ±0.25% (Brix) |
| Temp. compensation | no |
| Weight | 3000 g |
