Beschreibung

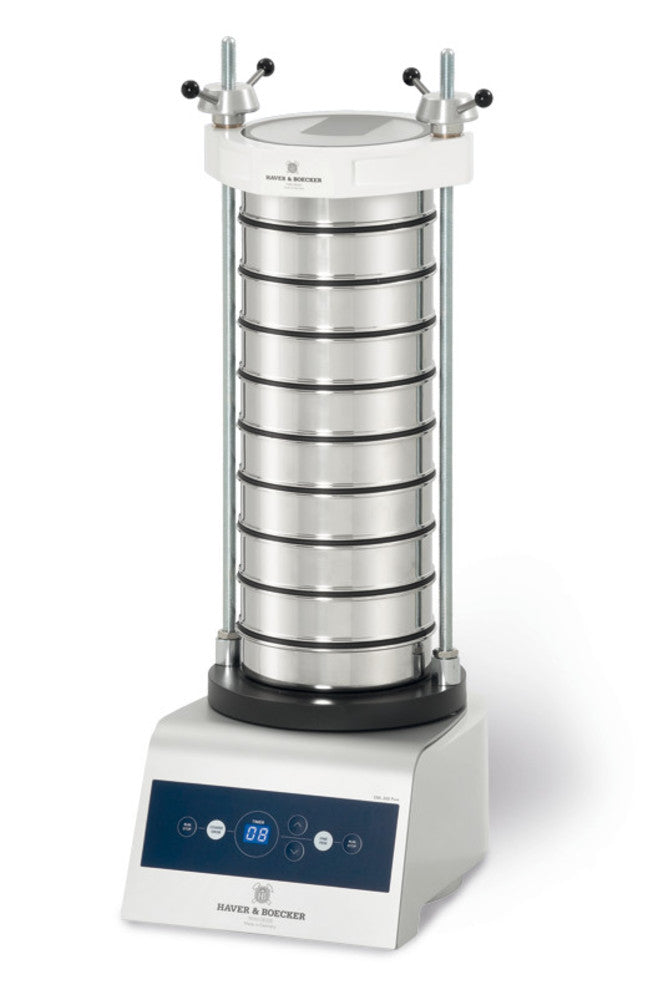

Analytical sieve machine, HAVER EML 200 Pure, incl. Classic eco clamping system (2 M16 guide bars, 660 mm long, 2 tensioning nuts) and machine cover with window
For sieve analysis in accordance with ISO 2591-1. Standard model for dry sieving and fast and easy operation. Measuring range 20 μm-125 mm. Suitable for test sieves with Ø 50 to 203 mm.
- Two optional amplitudes to select from: 2.2 mm for coarse or 0.9 for fine materials
- Preset interval (10 s)
- Digital timer
- Anodised aluminium housing
Delivery incl. Classic "eco" clamping system (2 x M16 guide bars, 660 mm long, 2 clamping nuts) and a machine cover with window.Delivery without sieve pan (Art. No. ECC7.1), please order separately.
Technical Information
| Type | EML 200 Pure |
| Measuring range | 0.02-125 mm |
| Movement type | three-dimensional |
| Shaking amplitude (stroke) | 2,2 mm / 0,9 mm |
| Timer | 1 min or continuous operation |
| Loading capacity from | min. 3 test sieves with usable height 50 mm and one sieve pan |
| Loading capacity up to | max. 9 test sieves with usable height 50 mm or 8.7 kg sieve stack weight |
| Width | 295 mm |
| Depth | 385 mm |
| Height | 900 mm |
| Weight | 38 kg |
| Mains connection | 110-230 V, 50/60 Hz |
