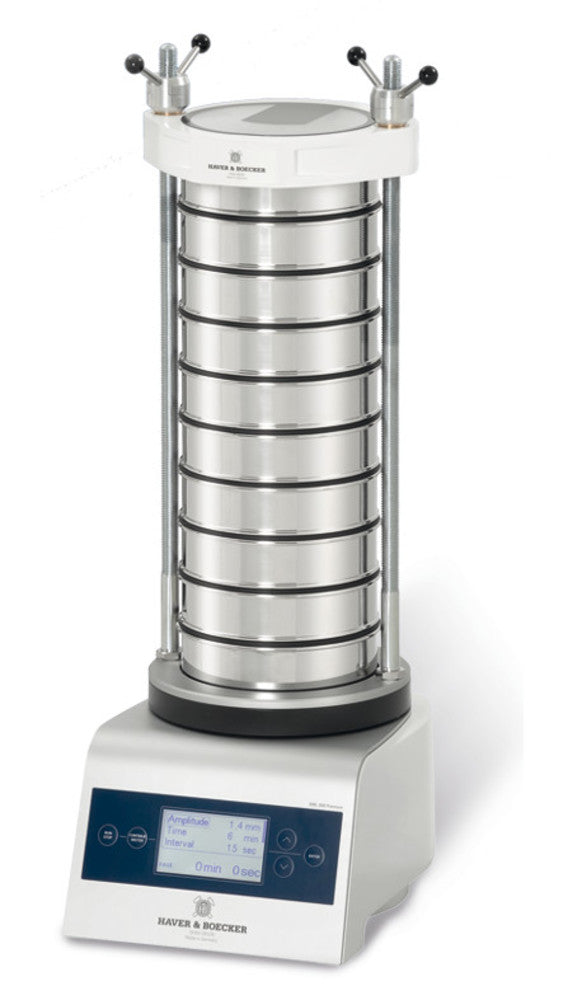

Analytical sieve machine EML 200 Premium, with TwinNut rapid clamping system, incl. clamping system (2 M20 guide bars, 660 mm long, 2 tensioning nuts) as well as machine cover with window.
For sieve analysis in accordance with ISO 2591-1. Measuring range 20 μm–125 mm. Suitable for test sieves with Ø 50 to 203 mm.
- Fast and easy to operate
- Amplitude is adjustable in 0.1 mm increments
- Intermittent operation or continuous operation
- Memory for storing various sieve modes (49 memory slots)
- Ethernet interface
- Optional TwinNut rapid clamping system allows easier and faster replacement of sieves without time-consuming screwing
Suitable for dry sieving.
Delivery incl. clamping system (2 x M20 guide bars, 660 mm long, 2 clamping nuts) and a machine cover with window.Delivery without sieve pan (please order separately).
Technical Information
| Type | EML 200 Premium |
| Version | TwinNut rapid clamping system |
| Measuring range | 0.02–125 mm |
| Movement type | three-dimensional |
| Shaking amplitude (stroke) | 0,1-3,0 mm |
| Timer | 1 to 99 min or continuous operation |
| Interval operation | 1 to 99 s |
| Loading capacity from | min. 3 test sieves, one sieve pan |
| Loading capacity up to | max. 9 test sieves or 8.7 kg sieve stack weight |
| Width | 295 mm |
| Depth | 385 mm |
| Height | 880 mm |
| Weight | 38 kg |
| Mains connection | 110-230 V, 50/60 Hz |
