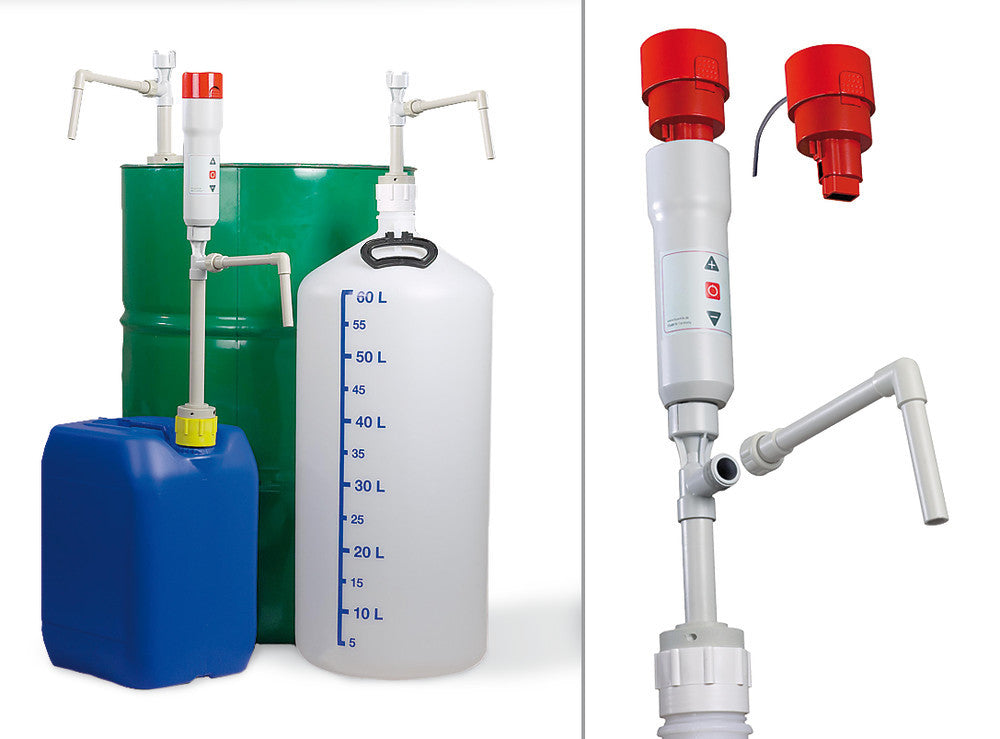

Barrel pumps EnergyOne, immersion depth 1000 mm, incl. drainage elbow, mains adapter and international socket adapter
Material: Hastelloy, PP, PVDF, PTFE (in contact with media).
- Unique hybrid system makes filling liquids fast and versatile, i.e. by changing the supply units to use either with battery or mains adapter
- The drive can be disconnected easily via a clip lock. This makes it possible to use one drive for filling at several stationary pump stations
- Continuously variable control of flow rate from 0.4 l/min to 12 l/min via TouchPanel
- Barrel screw joint can be continuously adjusted with respect to height and this secures the barrel pump in the barrel
Available as an option:
- Flexible drain hose with nozzle. Drain hose connection 3/4″
- Mains-operated barrel pump (offers versatility and independence from battery charging)
- Unlimited filling duration
Delivery incl. fixed drainage adapter, mains adapter and international plug adapter.Barrel screw joint not included, please order separately.
Technical Information
| Length | 1325 mm |
| Motor Ex-protected | no |
| Delivery rate | 12 l/min |
| Immersion depth | 1000 mm |
| Ø Immersion tube | 25 mm |
| Weight | 580 g |
