Beschreibung

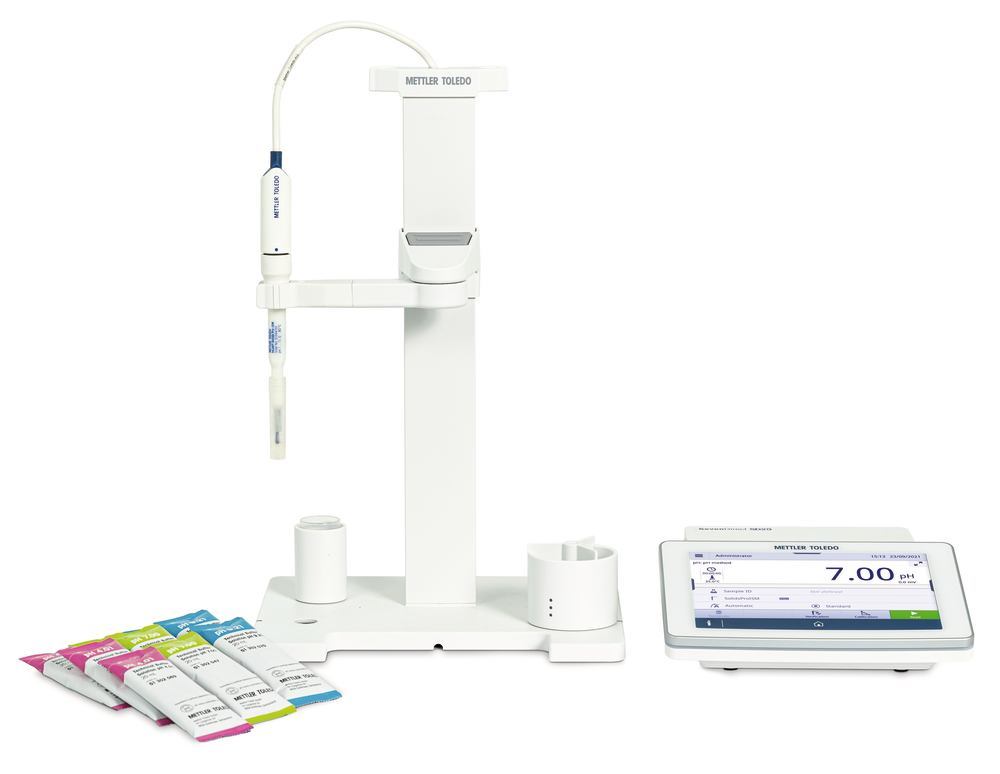

Benchtop pH meters, SevenDirect(TM) SD20 Solids kit, incl. InLab® Solids Pro-ISM®, buffer solutions (pH 4.01, 7.00, 9.21 and 10.00, 2 x 20 ml of each), electrode holder and protective cover.
For determining pH/Redox.
- Large colour touchscreen (7″) for straightforward data input and direct measurements.
- Simple and intuitive operation. On-screen instructions provide step-by-step guidance through the programs (e.g. sensor calibration).
- Screen display can be adjusted for specific requirements. Full-screen mode displays all information, while the details screen only shows the most important measurement information with large digits.
- Calibration can be performed with predefined and user-specific buffers and buffer groups. Calibration memory with optional sensor lock setting available. Quality of the most recent sensor calibration shown directly via pH sensor symbol. Verification mode enables checking of the current sensor status.
- Electrode arm can be operated easily with one hand. Simple and safe electrode handling via specific positions for cleaning and storage. Precise positioning via vertical and horizontal movements.
- Traceable documentation. With each measurement, data such as the timestamp or sample and sensor ID is saved and automatically printed or exported.
- Two-level user management (administrator, operator) prevents unwanted changes to device settings.
- Internal measurement data memory: save by pressing a key or with time-controlled, measuring intervals.
- Intelligent Sensor Management (ISM®) for automatic recognition of ISM® sensors and reading in calibration data.
For semi-solid and solid samples such as creams, yoghurt, butter, dough, cheese, meat, fish, fruit and vegetables.InLab® Solids Pro-ISM® pH single-rod measuring cell with integrated temperature gauge and robust, spear-shaped glass diaphragm tip for easier insertion into the sample. Non-clogging hole diaphragm eliminates the risk of protein deposits.
Delivery incl. InLab® Solids Pro-ISM®, buffer solutions (pH 4.01, 7.00, 9.21 and 10.00, 2 x 20 ml of each), electrode holder and protective cover.
Technical Information
| Type | SD20 Solids kit |
| Sensor | InLab® Solids Pro-ISM® |
| Parameters | pH redox temperature |
| pH measuring range | -2 to +20 |
| pH resolution | 0,001 / 0,01 / 0,1 pH |
| pH accuracy | ±0.002 pH |
| Voltage measuring range | -2000 to +2000 mV |
| Voltage resolution | 0,1 / 1 mV |
| Voltage accuracy | ±0,2 mV |
| Temperature measuring range | -30 to +130 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.1 °C (0.0 to 100.0 °C) ±0.3 °C (outside) |
| Temperature sensor | NTC 30 kΩ, pt 1000 |
| Calibration points | 1/2/3/4/5 (pH) |
| Calibration memory | current calibration (incl. date and time) |
| Data memory | 2000 datasets |
| Port | USB-A (USB stick, printer, barcode reader), USB-B (PC) |
| ISM Technology | yes |
| IP rating | 54 |
| Connection | BNC (pH), Cinch (°C) |
| L x W x H | 205 x 195 x 65 mm |
| Power supply | mains adapter |
| Mains connection | 100-240 V, 50/60 Hz |
