Beschreibung

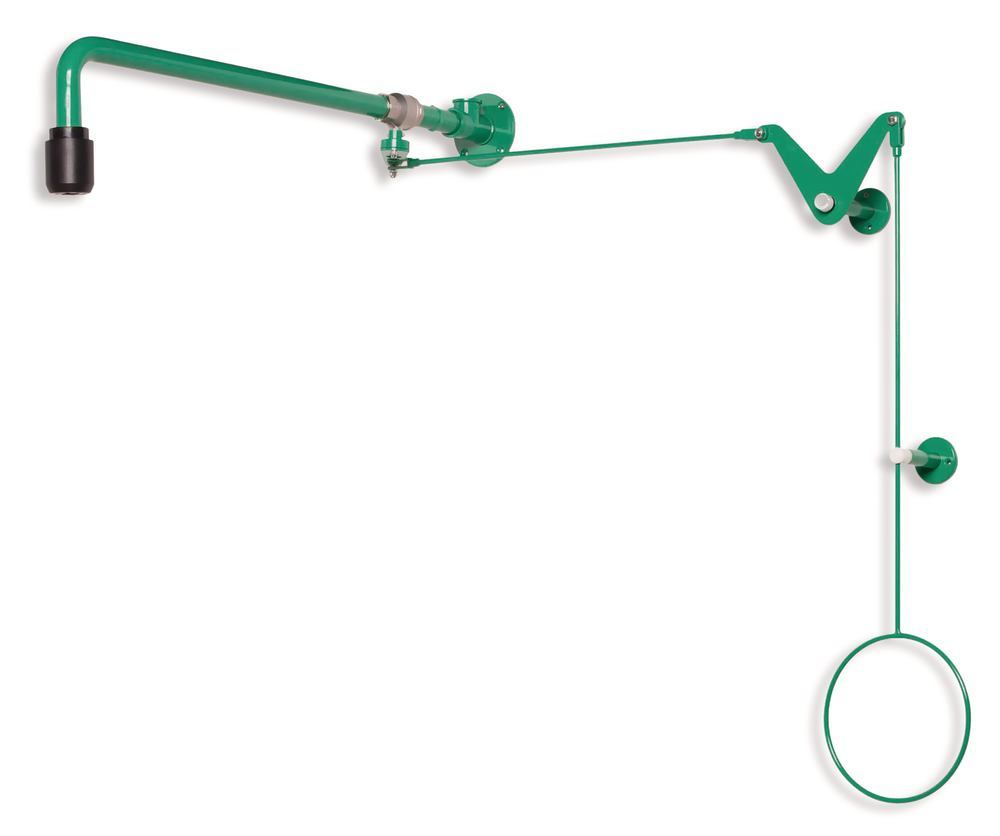

Body shower for over-door mounting , with pull rod for redirection
DVGW-tested and approved. Acc. to DIN EN 15154-1:2006, DIN EN 15154-5:2019 and ANSI Z 358.1-2014.
- Application through wall flange, surface-mounted supply line
- Stable design due to robust brass body
- Chemical-resistant powder coating
- Large maintenance-free ball valve for high flow rates (50 l/min at 1.5 bar)
- 1.5 to 3 bar water pressure application range
- Triggered through non-self-closing pull rod valve
- Large, easy-to-operate pull rod
- Self-emptying high-power shower head (prevents build-up of bacteria and calcification)
- Length: 700 mm
- Projection: 630 mm
- Attachment height: 2345 mm (±100 mm)
- Pull rod length: 500 mm
Pull rod can be mounted either to right or left of the door.
Delivery incl. self-adhesive information sign for body shower according to DIN EN ISO 7010 and ASR A1.3, 150 x 150 mm.
Technical Information
| Type | Emergency body shower mounted over the door with pull rod for redirection |
