Beschreibung

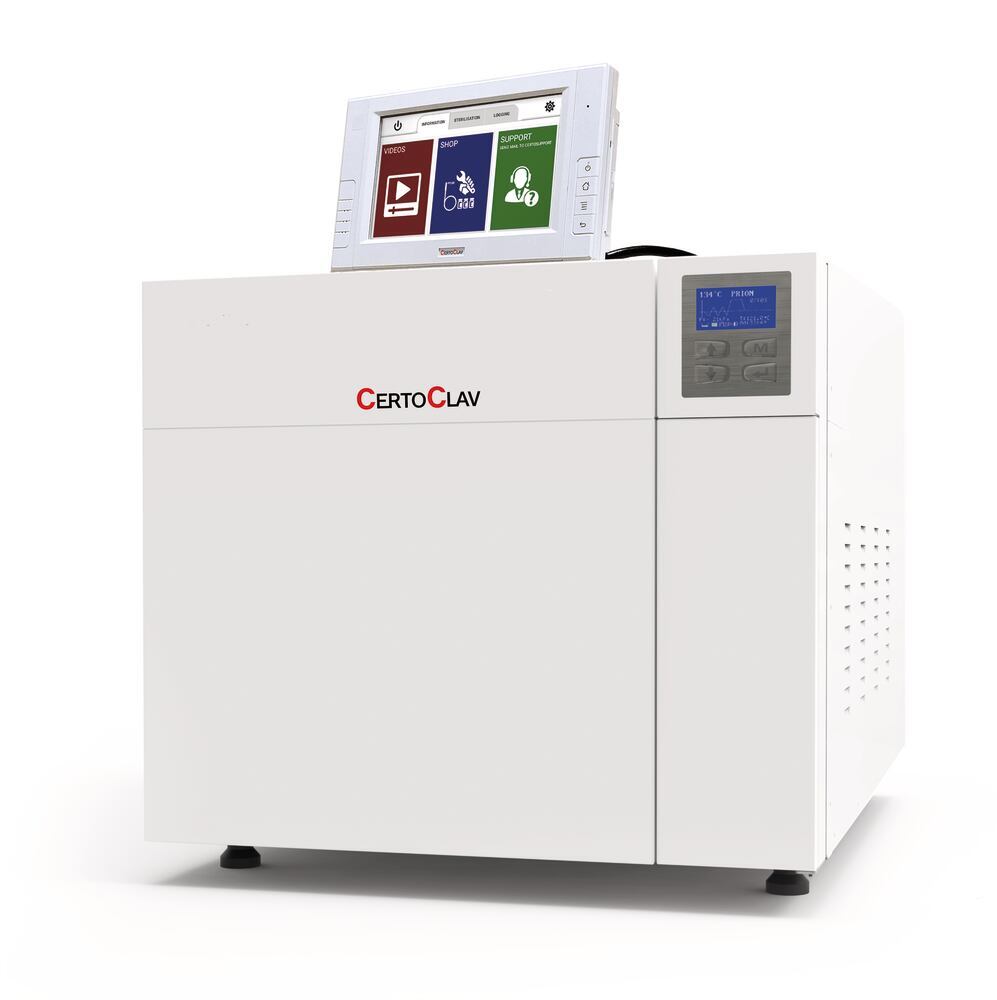

CertoClav icanClav STE-45-T, 45 l, 105-134 °C, 0.2-2.1 bar, , incl. 3 drawers and housing, waste water hose, handle and basic licence. Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV188., UN-Nr. 3091
For the sterilisation of liquids, solids and waste, e.g. instruments, hollow bodies, porous materials, textiles, plastics, etc.
- Chamber material: stainless steel 1.4307
- Sterilisation temperature 105-134 °C, Sterilisation pressure 0.2-2.1 bar
- 7″ touchscreen user interface
- Up to 50 user-definable programmes in three different types (solid, liquid, vacuum test) can be freely created
- Vacuum pump
- Video step-by-step guide can be activated directly on the steriliser
- Integrated steam generator separated from the chamber
- Integrated water tank for distilled water
- Connections for report generation: USB, SD card, RS 232 and RS 485
- Network-enabled with Ethernet, LAN and Wi-Fi
- Flexible Pt 1000 media temperature sensor to measure and regulate the temperature directly in the medium
- The base plate is required for autoclaving liquids, please order separately
- Distilled water tank volume of 5 l, waste water tank volume of 3 l
- Loading capacities of screw top bottles: e.g. 30 x 100 ml, 20 x 250 ml, 12 x 500 ml or 9 x 1000 ml
- Tray set: frame W 259 x D 460 x H 260 mm, drawers W 226 x D 510 mm (usable height per drawer 55 mm)
Delivery incl. tray set with three drawers, drawer enclosure, handle, quick connect waste water hose and CertoCloud basic license. Please order base plate for bottles and flasks separately.
Technical Information
| Type | icanClave STE-45-T |
| Vol. | 45 l |
| Temperature stage | 105-134 °C |
| Pressure level | 0,2-2,1 bar |
| Port | USB, SD card, RS 232 and RS 485 |
| Ø internal | 319 mm |
| Inner depth | 617 mm |
| Outer length | 840 mm |
| Outer width | 640 mm |
| Outer height | 560 mm |
| Weight | 120 kg |
| Mains connection | 220 V, 50/60 Hz |
