Beschreibung
Product data

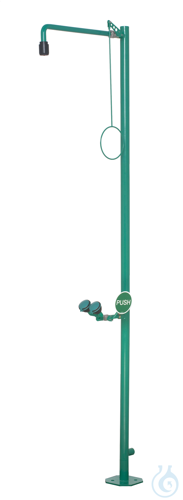

- including upper and lower water connection 1 1/4-inch female for installation in circulation pipes, plug 1 1/4-inch made of stainless steel
- Stand with 4 fixing holes made of stainless steel, chemical-resistant green powder-coated, dimensions 200 x 200 mm
- 1 1/4-inch stainless steel standpipe in two parts, chemical-resistant, green powder-coated, with upper and lower water connection 1 1/4-inch female, total height 2330 mm
- Connecting piece 3/4-inch stainless steel, for quick assembly on site and easy alignment of the shower arm
- 3/4-inch stainless steel ball valve, with quick-mounting system and pull-rod actuation, DIN-DVGW tested and approved
- Pull rod with ring handle made of steel, chemical-resistant green powder-coated, length 700 mm
- 3/4-inch stainless steel wall-mounted shower arm, chemical-resistant, green powder-coated, projection 625 mm
- Integrated automatic flow regulator 50 litres/min. for a standard-compliant spray pattern at a specified working range of 1.5 to 3 bar flow pressure
- High-performance shower head made of chemical-resistant plastic, black, with improved spray pattern, corrosion-resistant, largely free of limescale and maintenance, very robust, self-draining
- Information sign for body safety shower in accordance with DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC film, dimensions 150 x 150 mm, recognition range 15 metres
- Integrated ClassicLine safety eye shower with two 45° shower heads, mounting height 970 mm, orientation of eye shower freely selectable on site
- Stainless steel connection pipe for easy installation and alignment of the shower, chemical-resistant green powder-coated, 3/4-inch threaded water connection
- Ball valve 1/2-inch stainless steel, with PUSH lever operation, DIN-DVGW tested and approved
- Control panel made of steel, chemical-resistant green powder-coated, length 130 mm, with large signal ''PUSH'', photoluminescent according to DIN 67510
- Integrated automatic flow regulator 14 litres/minute for a standard-compliant spray pattern with a specified working range of 1.5 to 5 bar flow pressure
- wide-jet high-performance spray heads angled 45°, with plastic spray plate, low limescale, incl. rubber protection and tight-fitting dust cover with hinged mechanism, mounted over distribution fork
- Sign for eye shower according to DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC foil, dimensions 100 x 100 mm, recognition range 10 metres
- in accordance with BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
- according to ANSI Z358.1-2014, DIN EN 15154-1:2006, DIN EN 15154-2:2006 and DIN EN 15154-5:2019
- DIN-DVGW tested and approved
- Make: B-SAFETY or equivalent
Technical data
- Minimum flow pressure: 1.5 bar
- Operating pressure: 1.5 to 3 bar
- Flow rate body shower: 50 litres/min.
- Flow rate eye shower: 14 litres/min.
- Water connection: 1 1/4-inch IG
Product overview
BR832085: Volume flow 50 litres/min. (hazard class I according to DIN EN 15154-5:2019)
BR832085/75L: Flow rate 75 litres/min. (Hazard class II according to DIN EN 15154-5:2019)
BR832085/110L: Volume flow 110 litres/min. (Hazard class III according to DIN EN 15154-5:2019)
