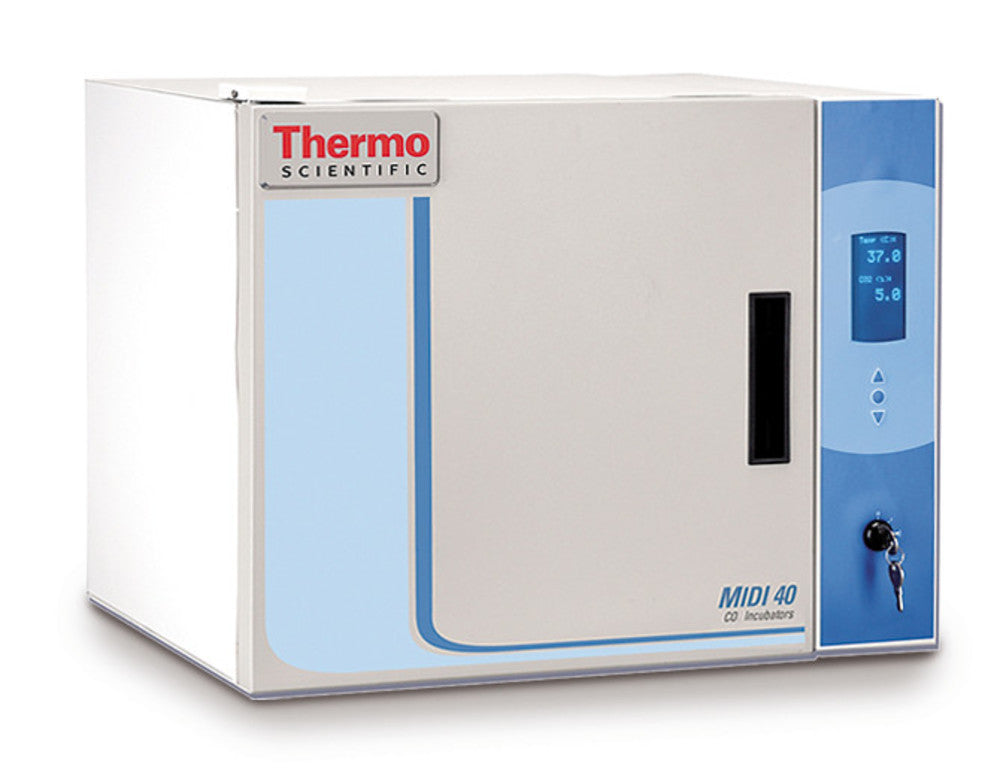

CO2-incubator Midi 40, capacity 40 l
For users in cell culture who wish to breed small cultures or have only limited space in the laboratory.
- Operating temperature range from +5 °C above room temperature to 60 °C (in 0.1 °C increments) and CO2 concentrations up to 20% (in 0.1% increments)
- Digital display for easy input of °C, CO2 content and alarm limits
- Setpoints can be secured using a key-operated switch to prevent unwanted alteration of the operating parameters
- Seam-free interior made of stainless steel (non-corrosive stainless steel, type 304) with four extractable shelves
- Removable water container for a relative humidity of up to 95%
- Inside door made of safety glass is heated by the outside door to avoid condensation
- To supply the incubator with CO2, a separate gas cylinder or a central compressed-gas tank is required
- Conditioned water (demineralised/distilled and autoclaved or fully desalinated/distilled and autoclaved) is required for humidification
Delivery incl. four perforated stainless steel trays (W 343 x D 292 mm), water container (Ø 12.7 mm), CO2 filter and hose set (ID 1.59 mm, OD 6.35 mm, approx. L 0.5 m). Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Technical Information
| Type | Midi 40 |
| Vol. | 40 l |
| Operating temperature | from +5 °C above room temperature to +60 °C |
| Inner width | 305 mm |
| Inner depth | 355 mm |
| Inner height | 355 mm |
| Outer width | 470 mm |
| Outer depth | 597 mm |
| Outer height | 465 mm |
| Required input pressure | 1.0 bar, 99.5 % by volume medical CO2 quality |
| Intake-air filtration | CO2 filter, PTFE filter 0.3 μm |
| Temperature variance | ±0,4 K |
| CO2 constancy | ±0,10 % |
| Weight | 32 kg |
| Mains connection | 230 V, 50/60 Hz |
