Beschreibung

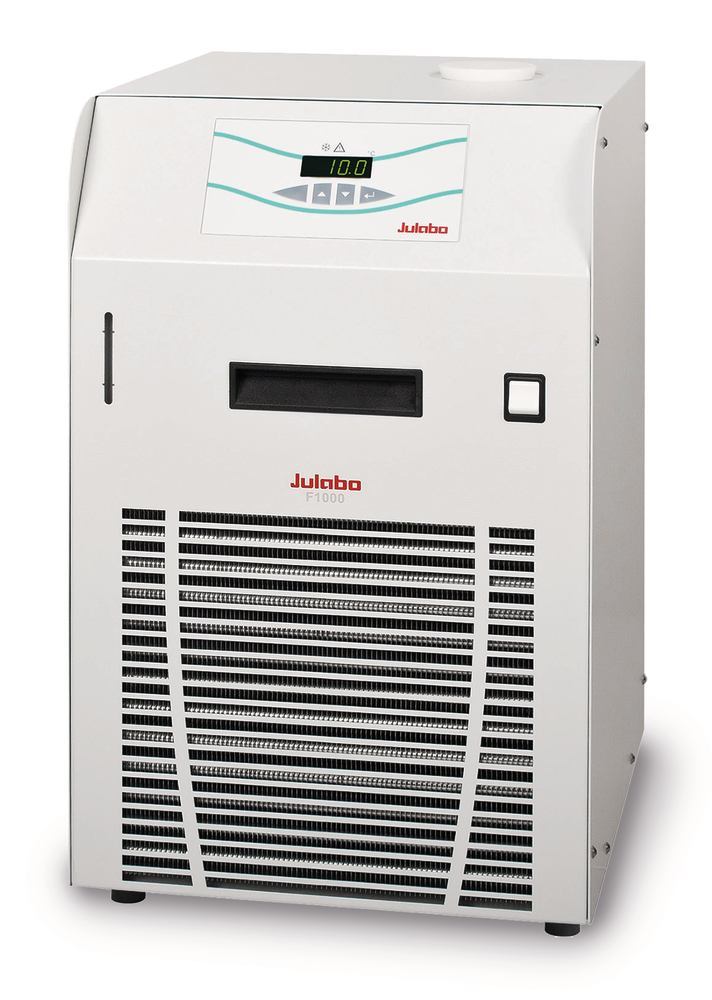

Compact recirculating cooler, model F1000, incl. 2 hose connectors suitable for hoses with 8 and 12 mm inner Ø
Applications: rotary evaporators, soxhlet apparatuses, distillation plants, gas chromatographs, etc. For external, closed applications.
Features:
- LED temperature display, display resolution 0.1 °C
- PID temperature control
- Drain tap for easy emptying
- Fill level indicator
Delivery incl. 2 hose olives suitable for hoses with 8 and 10 mm inner-Ø (model F250) or hoses with 8 and 12 mm inner-Ø (model F500, F1000).
Technical Information
| Type | F1000 |
| Operating temperature | 0 to +40 °C |
| Temperature constancy | ±0,5 K |
| Display resolution | 0,1 °C |
| Heating output | 0 W |
| Cooling capacity | 20 °C: 1000 W 10 °C: 700 W 5 °C: 550 W 0 °C: 250 W |
| Max. pump pressure | 1000 mbar |
| Max. flow | 23 l/min |
| Bath volume | 7-9,5 l |
| Outer width | 375 mm |
| Outer depth | 490 mm |
| Outer height | 640 mm |
| Weight | 45 kg |
| Mains connection | 230 V, 50 Hz |
