Beschreibung

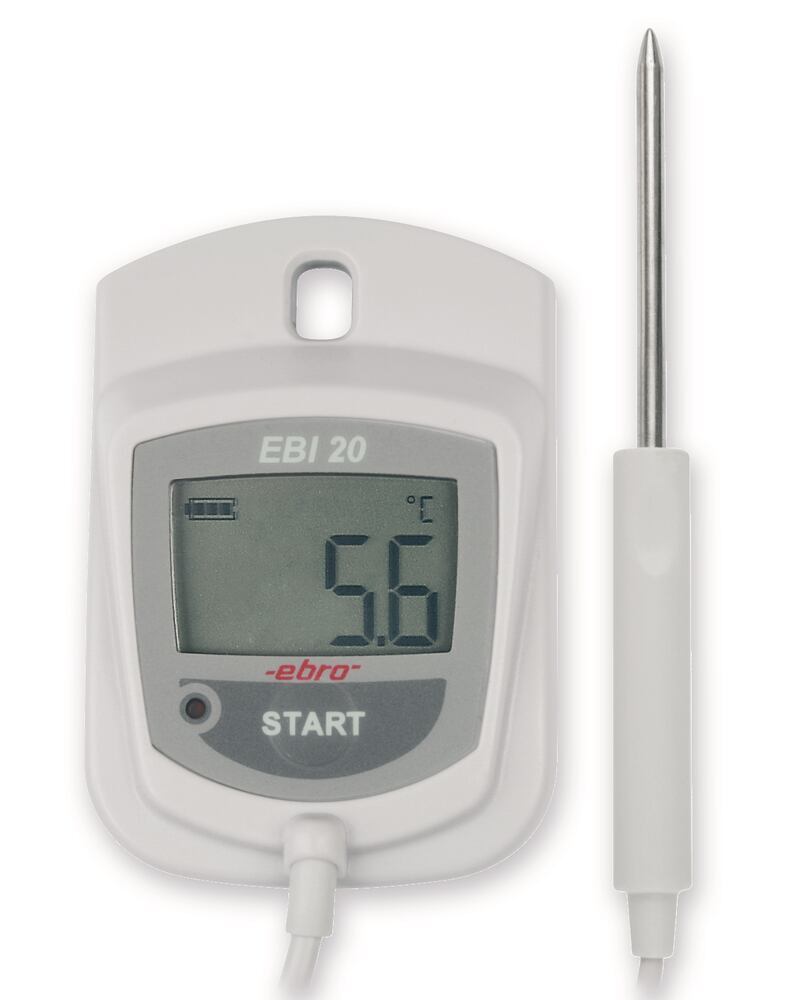

Data logger EBI 20-TE1, with external temperature gauge, includes calibration certificate and battery. Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV188., UN-Nr. 3091
Easy to use. With factory calibration certificate (test points: -20 and 0 °C).
- With alarm management (visual when limit value is breached)
- DIN EN 12830 and HACCP compliant
- Windows-compatible software: logger programming, data readout, graphical and tabular display, protocol printout, data export to Microsoft® Excel and PDF. FDA 21 CFR Part 11 functionality available as an option. Free to download
- Interface and USB cable required for communication between the logger and software; if not included in the scope of delivery, please order separately
Delivery incl. calibration certificate and battery.Without software, interface and USB cable, please order separately.
Technical Information
| Type | EBI 20-TE1 |
| Version | with external temperature gauge |
| Parameters | temperature |
| Temperature measuring range | -30 to +70 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.5 °C (-20 to +40 °C) ±0.8 °C (outside) |
| Sensor type | NTC |
| Display | yes |
| Data memory | 40,000 measured values |
| Measuring cycle | 1 min to 24 h |
| Port | USB |
| IP rating | 67 |
| Min./max. function | yes |
| L x W x H | 69 x 48 x 22 mm |
| Sensor: Ø x L | 3 x 55 mm |
| Weight | 45 g |
| Power supply | 1x CR 2450 (3 V) button cell |
