Beschreibung

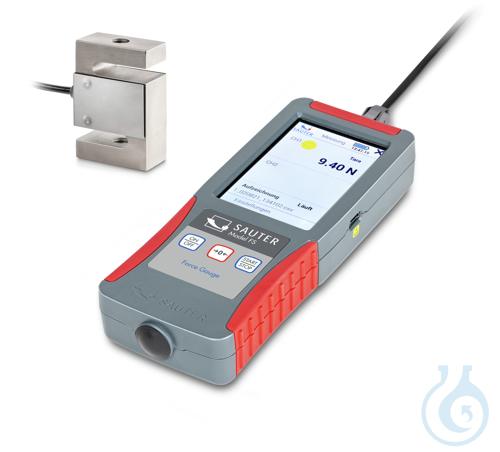

Digital force gauge (external measuring cell) FS 2-5KSP1 is a premium FS 2 instrument for measuring forces up to 5 kN via an external sensor. The four-wire S-type measuring cell CS 500-3P1 in nickel-plated steel is specified to accuracy class OIML C3 with a nominal characteristic value of 2 mV/V and hermetic IP67 protection to EN 60529, supporting both tension and compression force measurements.
This article is part of Hygrometers & humidity meters, in Temperature measurement.
A 3,5'' touchscreen with touch pen provides the user interface. Two measuring channels for external force sensors are standard and can later be expanded from two to four; sensor-specific data reside in the connector. Selectable SI units include kg, N, kN, mN, MN, Nm, kNm and mNm. Track, peak-value and tolerance functions, 16 GB internal device memory and a USB interface for data transfer and power supply facilitate routine work. Two-point adjustment with weights or numerical adjustment is possible. The instrument from manufacturer Kern is supplied in a robust systainer® T-LOC system case including plug-in power supply and USB Type-C cable as a single unit.
Key features
- Pack size: 1 pc
- Maximum force: 5 kN
- Sensor: 4-wire S-cell CS 500-3P1, nickel-plated steel
- Accuracy class: OIML C3
- Protection rating: IP67, hermetically sealed
- EAN: 4045761358478
- Technical Information Sheet:
