Beschreibung

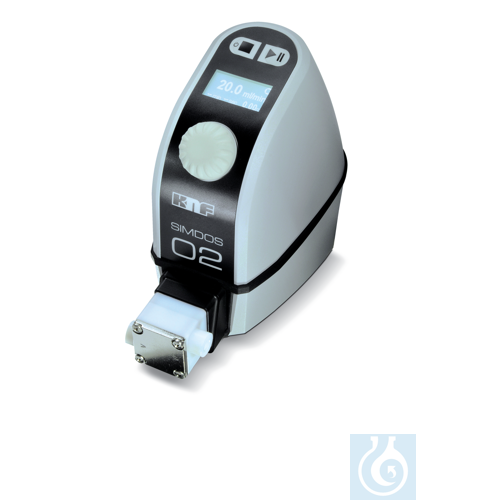

Dosing pump SIMDOS® 02, FEM1.02TT.18S PVDF is a chemical-resistant diaphragm dosing pump engineered for accurate liquid dosing. The unit provides a manually adjustable flow range of 0,03–20 ml/min (water at 20 °C, zero head), a pressure height of 60 mWS and a suction height of 2 mWS. Its pump head is manufactured from PVDF, the working diaphragm from PTFE and the valves from FFKM, ensuring high resistance to aggressive media. Version S allows straightforward manual setting of the delivery rate; an integrated safety diaphragm adds an extra protective barrier, and diaphragm exchange is guided by a built-in maintenance routine. The hose barb accepts tubing of ID 1,6 mm / OD 3,2 mm. Overall dimensions are 93 × 144 × 150 mm and the net weight is 0,9 kg. Supplied by manufacturer KNF together with a suction filter, 2 m connection hose and power supply, the pump is immediately ready for laboratory or small-scale process dosing tasks that demand chemically inert wetted parts and reproducible volumetric delivery.
This article is part of Peristaltic & dosing pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Flow rate: 0,03–20 ml/min
- Pump head material: PVDF
- Diaphragm material: PTFE
- Valve material: FFKM
- Pressure height: 60 mWS
- Technical Information Sheet:
Recent bekeken
Misschien vind je dit ook leuk
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Dosing Pump SIMDOS® 02, FEM1.02TT.18S PVDF
What is this article?
Dosing Pump SIMDOS® 02, FEM1.02TT.18S PVDF is the article on this page. Luminix Health distributes KNF for laboratory use. It sits in Peristaltic & dosing pumps, inside Pumps, vacuum & evaporation, in Präzisionsinstrumente.
A peristaltic pump moves liquid by rollers squeezing a tube, so the liquid never touches the mechanism. Flow depends on the tube bore and the speed. A dosing pump aims at a set volume. The tube is the consumable, and the chemical has to be one that tube survives.
A vacuum pump lowers the pressure above a liquid so it boils at a lower temperature. That is the point of a rotary evaporator: solvent leaves a sample without cooking it. A diaphragm pump or a rotary-vane pump is chosen by the vacuum it reaches and by whether solvent vapour will destroy it. A peristaltic pump moves liquid by squeezing a tube, so the liquid touches only the tube. A barrel pump transfers a larger volume from a drum. The glassware on the evaporator is indexed under ISO laboratory glassware. Solvent identity is on PubChem.
