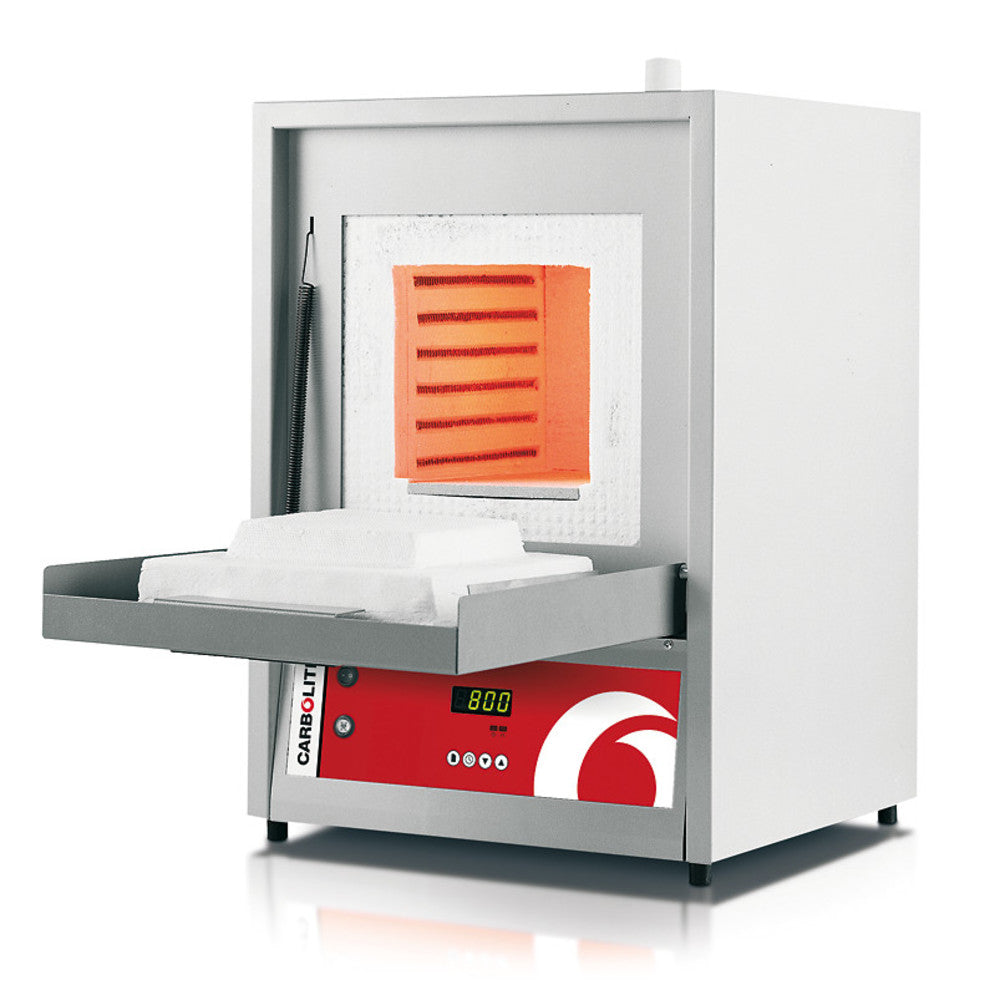

Economy laboratory furnace ELF 11/6, max. 1100 °C, 6 l, incl. shockproof plug, 230 V, 1-phase, 50 Hz
For temperatures up to 1100 °C.
- General-diffuse heating coils on both side walls
- Furnace chamber comprising vacuum formed fibre insulation
- With abrasion-resistant base plate
- Double-walled housing for low ambient temperatures
- Short heating-up times of approx. 35 min
- Vent (Ø 30 mm)
- Forward hinged door
- PID thermostat with digital display (target/actual temperature display)
- Input of a temperature control profile with 2 segments (heating rate and hold time) using the timer function
- Built-in timer function (runtime: 99 h and 59 min)
- The timer can be operated in 5 different modes, e.g. the timer waits until the set temperature is reached, then begins to count down and on expiration shuts off the heater
- Please pay attention to supply voltages
Technical Information
| Type | ELF 11/6 |
| Vol. | 6 l |
| Max. temperature | 1100 °C |
| Inner width | 180 mm |
| Inner height | 165 mm |
| Inner depth | 200 mm |
| Outer width | 410 mm |
| Outer height | 580 mm |
| Outer depth | 420 mm |
| Power consumption | 2000 W |
| Weight | 20 kg |
| Mains connection | 230 V, single-phase, 50 Hz with shock-proof plug, 16 A fuse |
