Beschreibung

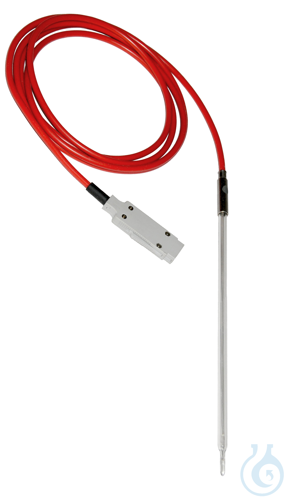

PT100 RESISTANCE THERMOMETER OF GLASS (N16B) Assembly: WT-GL-3/6-303 General Specifications: Labor resistance thermometer of glass Pt100, acc. to DIN EN 60751 Class AA, 4-wire connection, with glass shaft ø 6 mm, narrowed at sensor to ø 3 mm, compensating line fix connected through transition casing made of stainless steel, teflon/silicone insulated, cable length: 2 m, cable outlet secured by means of heat-shrink tubing. With ring marks on the glass shaft according to the immersion depths of standardized precision glass thermometers. Glass shaft Ø: 3/6 mm Nominal length: 250 mm Range of application: -50 °C to +250 °C Connection via plug PHYSICS resolution 0.001 °C Suitable to PHYSICS 1000
