Beschreibung
Heating tape PILZ® WBS (100W/m) silicone insulated 1.340W, length 13,5m, Tmax. 200°C 230V, connecting cable 1,5m
Operation together with a temperature controller is always recommended.

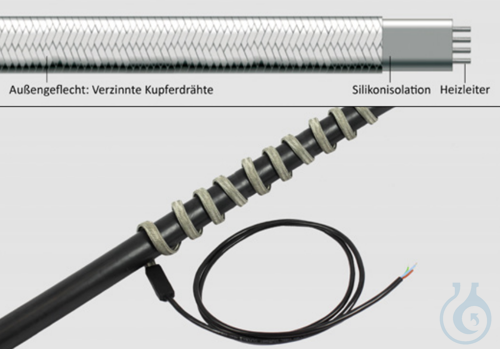

Technical Data/Structure
· Four heat conductors
· Silicon insulated heating cable
· Outer braid: tinned copper wires
· Nominal voltage: 230 VAC
· Mains connection: terminated ready for connection 1,5m
· Construction type: moisture resistant
· Dimensions: 13,0 x 5,0 mm
· Min. bending radius: > 9 mm
Application
In laboratories and experimental facilities where an easily employed system is
desired to heat shapes and parts to high temperatures or where it is important
to ensure short heating-up periods.
Advantages
· very high and constant heating power output per meter
· high operating temperature
· extremely flexible
· quick and easy installation
· cost effective
Please note:
· the high power output (W/m) requires a good heat-transfer
contact with the object to be heated.
· to avoid overheating, heating tapes or cables must installed in such
a way that they are not in contact with each other or overlapping.
· the surface temperature of the switched on heating system
is always higher than the pipe temperature.
· series resistance heating cables and tapes must be operated
with a temperature controller
Operation together with a temperature controller is always recommended.
old item number: WBS00202-230XX200-13501340
