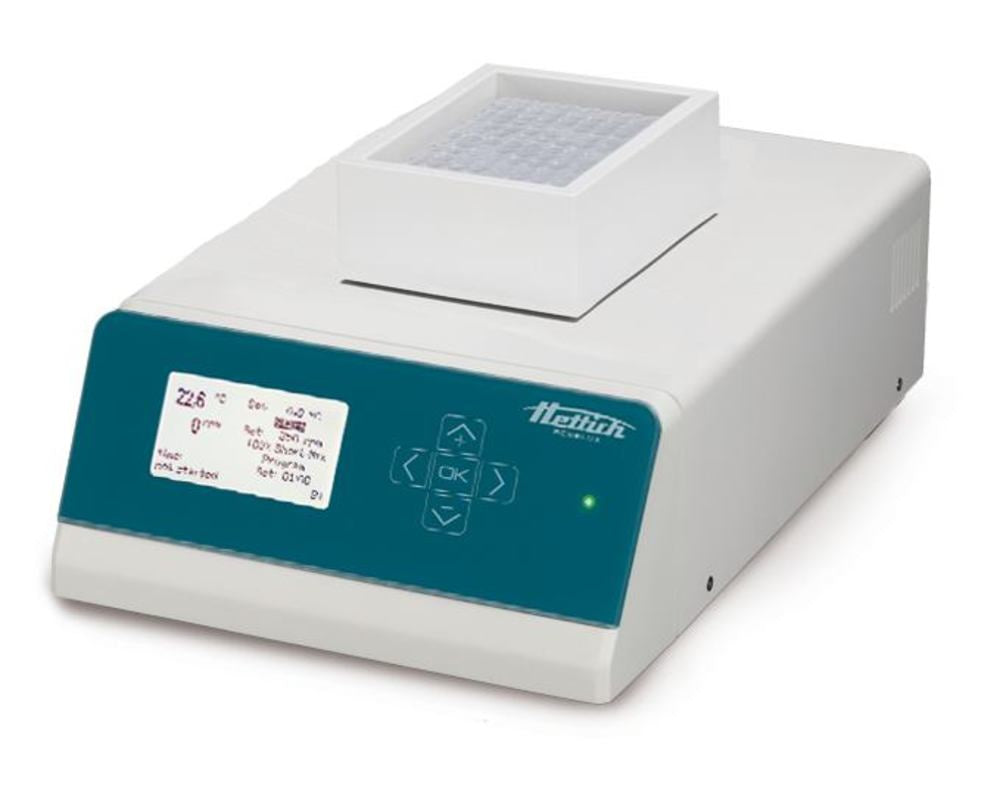

Heating thermoshaker MHR 13, 3 °C above AT up to +130 °C, for 1 changing block
For dry, clean and fast heating and mixing. For reaction vials, tubes and microtiter plates.
Equipment features of all models:
- With timer, short-mix function (e.g. for vortexing) and interval shaking with snipping effect
- Background LCD display for all setpoint and actual values
- Direct input of temperature curves with different shaking frequencies
- Removable control panel for connecting to an extension cable
Programmable control:Programmable with 30 programming steps for up to 9 different programs. Program parameters: Nominal temperature, process time (max. 99 h/continuous), expansion time (time in which the nominal temperature is to be reached), shaking frequency, interval shaking, pause, etc.
Circular shaking motion for dissolving critical DNA pellets from conical tips in conical reaction vials.
Delivery incl. control panel. Without interchangeable blocks, please order separately (see Interchangeable blocks for cooling and heating thermoshakers).
Technical Information
| Type | MHR 13 |
| Version | Heating |
| Shaking motion | round |
| Max. exchange blocks | 1 |
| Operating temperature | from 3 °C above room temperature to +130 °C |
| Temperature adjustment range | 0-140 °C |
| Accuracy | ±0,1 K |
| Resolution | 0,1 °C |
| Average heating rate | approx. 4 °C/min from +41 °Capprox. 5 °C/min up to +40 °C |
| Shaking frequency | 200-1500 rpm |
| Shaking amplitude (stroke) | 3 mm |
| W x D x H | 220 x 345 x 160 mm |
| Mains connection | 110/240 V, 50/60 Hz |
