Beschreibung

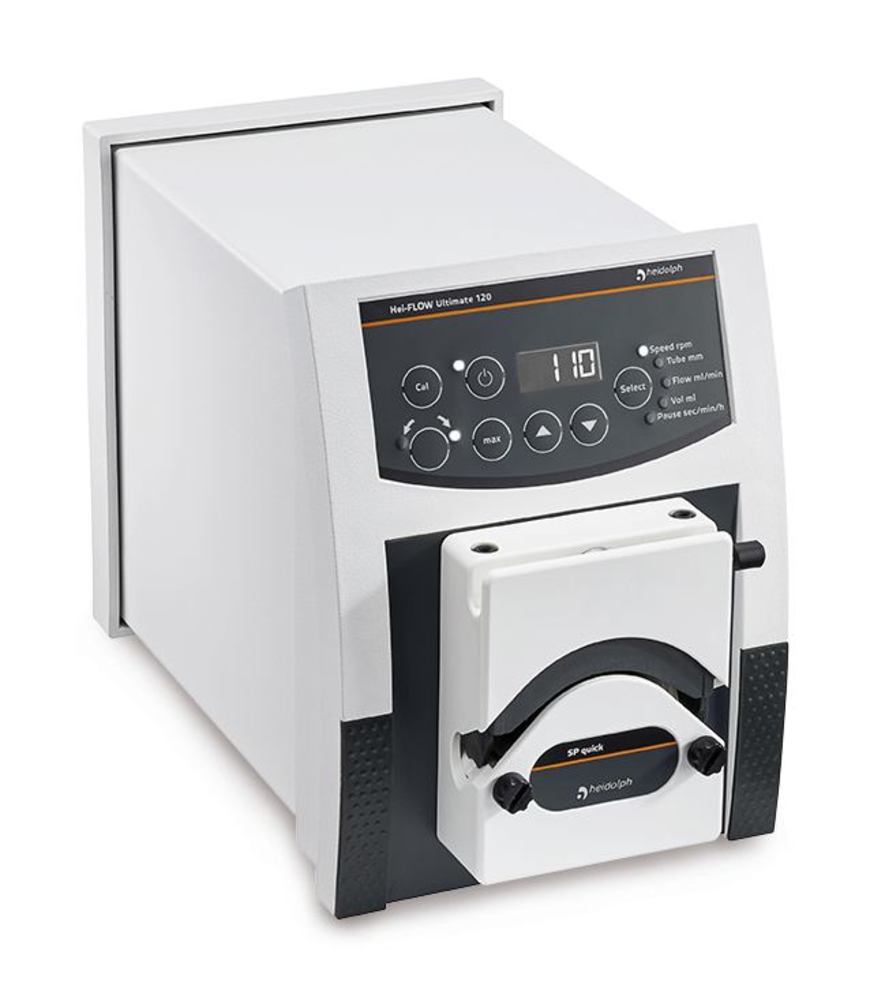

Hei-FLOW Ultimate 120, pump drive
Peristaltic pump for conveying and metering liquids with precision.
- Simple calibration of conveyed and dispensed volumes
- Intermittent dispensing
- With maximum speed button for faster filling and drainage of hoses
- Constant speed even under varying load
- Reversible direction of rotation (clockwise/counterclockwise)
- Stackable housing (max. two pump drives)
Modular design: the pump drive, pump head and pump hose can be freely combined.
Suitable for single-channel and multichannel operation.
Delivery without pump head and pump hose, please order separately.
Technical Information
| Version | Pump drive |
| Type | Hei-FLOW Ultimate 120 |
| Pump type | Ultimate 120 |
| Delivery rate | 0,02-409 ml/min |
| Dispensing volume | 0,1-9999 ml |
| Control accuracy | ±0,5 % |
| Speed | 5-120 rpm |
| Motor power | 100 W |
| Port | analogue and digital (RS 232) |
| Display | digital |
| L x W x H | 256 x 225 x 166 mm |
| Weight | 8.3 kg |
| Mains connection | 110-240 V, 50/60 Hz |
