Beschreibung

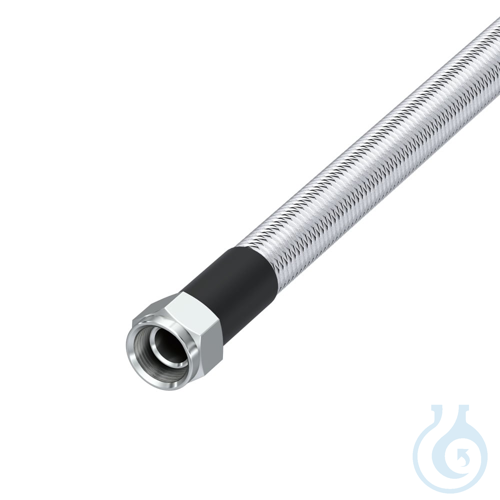

H.FKM.12, Hose kit, FKM, Ø12 mm, 2x1.5 m, M16x1
Hose set DN 12 (2 x 1.5 m)
Material: Viton (FKM), reinforced with stainless wire mesh
Temperature range: -30 - 180 °C
Max. operating pressure: 1 bar (>1bar on request)
Connection: Tube connector with M16x1 union nuts
? inner: 10 mm; ? outer: 16 mm
Chemical Resistance: water; silicon oils; ethylene glycol; mineral oil; ethanol
Hose set DN 12 (2 x 1.5 m)
Material: Viton (FKM), reinforced with stainless wire mesh
Temperature range: -30 - 180 °C
Max. operating pressure: 1 bar (>1bar on request)
Connection: Tube connector with M16x1 union nuts
? inner: 10 mm; ? outer: 16 mm
Chemical Resistance: water; silicon oils; ethylene glycol; mineral oil; ethanol
