Beschreibung

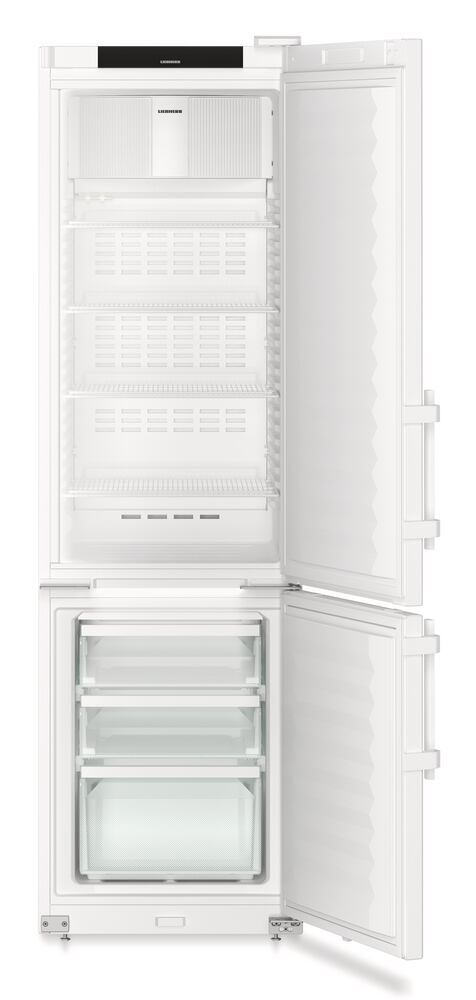

Lab fridge-freezer comb. SCFvh 4002, Fridge unit 206 l, freezer unit 58 l, Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV188.
- Adjustable cooling temperature (2 separately adjustable refrigeration circuits)Fridge unit: +3 to +16 °CFreezer unit: -9 to -30 °C
- 2.4″ TFT display with touch and swipe operation, 12 languages available
- Fridge unit with recirculated-air ventilation,freezer unit with NoFrost circulation cooling
- Digital temperature displayFridge unit resolution: 0.1 °CFreezer unit resolution: 0.1 °C (to -19.9 °C) or 1 °C (from -20 °C)
- Temperature consistencyFridge unit: ±3 KFreezer unit: ±5 K
- Memory for min./max. temperatures, recording duration 999 h or 42 d. With the option to reset the time and min./max. temperature for a new recording (after checking the temperatures)
- Integrated data logger with USB interface for reading out the temperature profile and alarm history, sampling rate 1 min (adjustable), max. recording duration 5 years
- Alarm function for door or temperature with information about date and alarm duration
- Information about the last 10 temperature and/or door alarms
- With lockable door
- LED light
- WiFi/LAN interface
- Feedthrough for external sensors (Ø 10 mm)
- With alarm relay, potential-free contact
There are additional transport costs for delivery to the point of use. We are happy to provide you with these on request.
Delivery incl. 4 grids for the fridge unit and 3 drawers.
Technical Information
| Type | SCFvh 4002 |
| Fridge unit cooling capacity | 206 l |
| Freezer unit cooling capacity | 58 l |
| Refrigeration temperature from | 3 °C |
| Refrigeration temperature up to | 16 °C |
| Freezing temperature from | -9 °C |
| Freezing temperature up to | -30 °C |
| Removable shelves in the fridge unit | grate |
| Removable shelves in the freezer unit | drawer |
| Inner fridge unit width | 460 mm |
| Inner fridge unit depth | 422 mm |
| Inner fridge unit height | 1037 mm |
| Inner freezer unit width | 406 mm |
| Inner freezer unit depth | 292 mm |
| Inner freezer unit height | 595 mm |
| Outer width | 597 mm |
| Outer depth | 654 mm |
| Outer height | 2044 mm |
| Thawing method | automatic |
| Energy efficiency class | - |
| Energy consumption (24 h) | 0.759 kWh |
| Weight | 90 kg |
| Mains connection | 230-240 V, 50 Hz |
