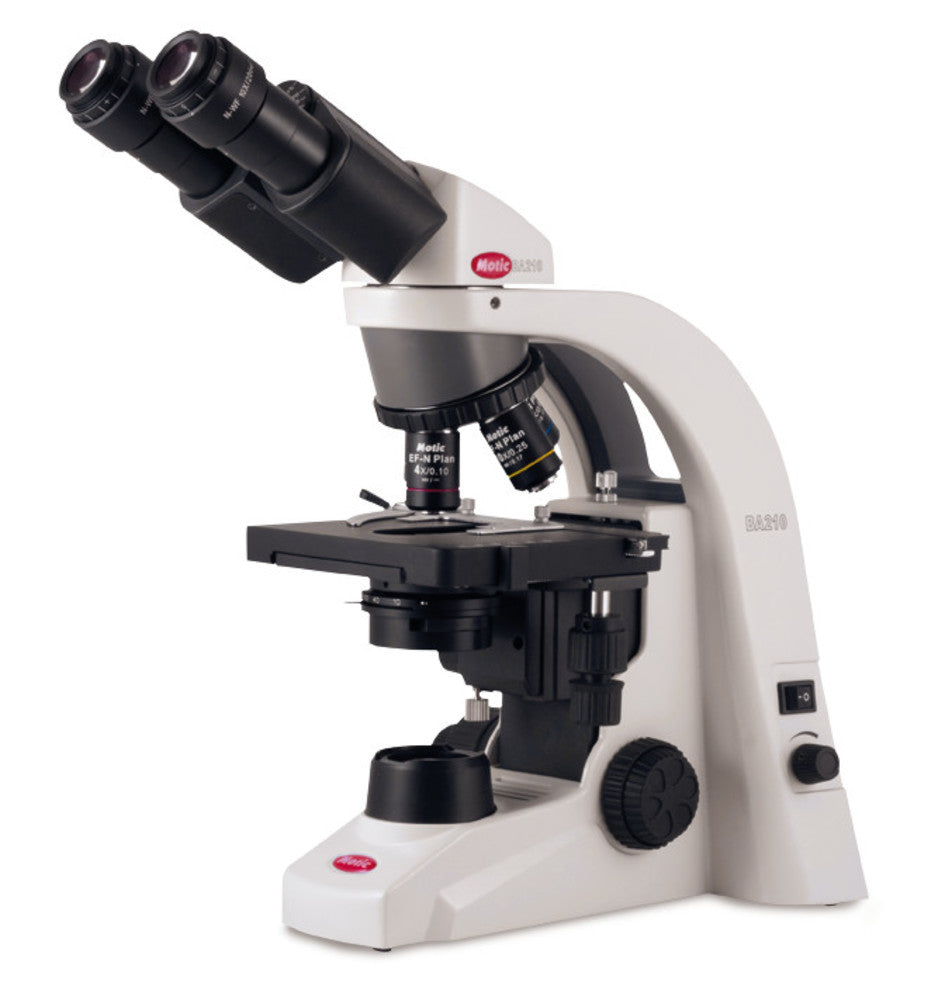

Laboratory microscope BA210, LED binocular, brightfield
Brightfield microscope for analysing high-contrast, stained samples. Lenses supplied: 4x, 10x, 40x and 100x. With LED lighting and infinite optics for optimum image quality.
Delivery incl. immersion oil and dust cover.
Technical Information
| Type | BA210 LED binocular |
| Tube | binocular |
| Total magnification | 40x, 100x, 400x, 1000x |
| Magnification type | turret |
| Ocular magnification | Widefield 10x |
| Lenses | plan achromatic |
| Lens magnification | - 4x/N.A. 0.10, W.D. 15.9 mm- 10x/N.A. 0.25, W.D. 17.4 mm- 40x S/N.A. 0.65, W.D. 0.5 mm- 100x S-Oil/N.A. 1.25, W.D. 0.13 mm |
| Field of view | 20 mm |
| Dioptre compensation | ±5 dpt on both eyepieces |
| Angular observation | 30 ° |
| Head | can be rotated 360° |
| Distance between eyepieces | 55-75 mm |
| Condenser | Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slider slot |
| Light source | LED |
| Image focusing | coarse and fine focus |
| Optics | infinity |
| Microscope stage | 140 x 135 mm areacoaxial x/y travel range of 76 x 50 mm |
| Power supply | mains-powered |
| Mains connection | 230 V, 50 Hz |
