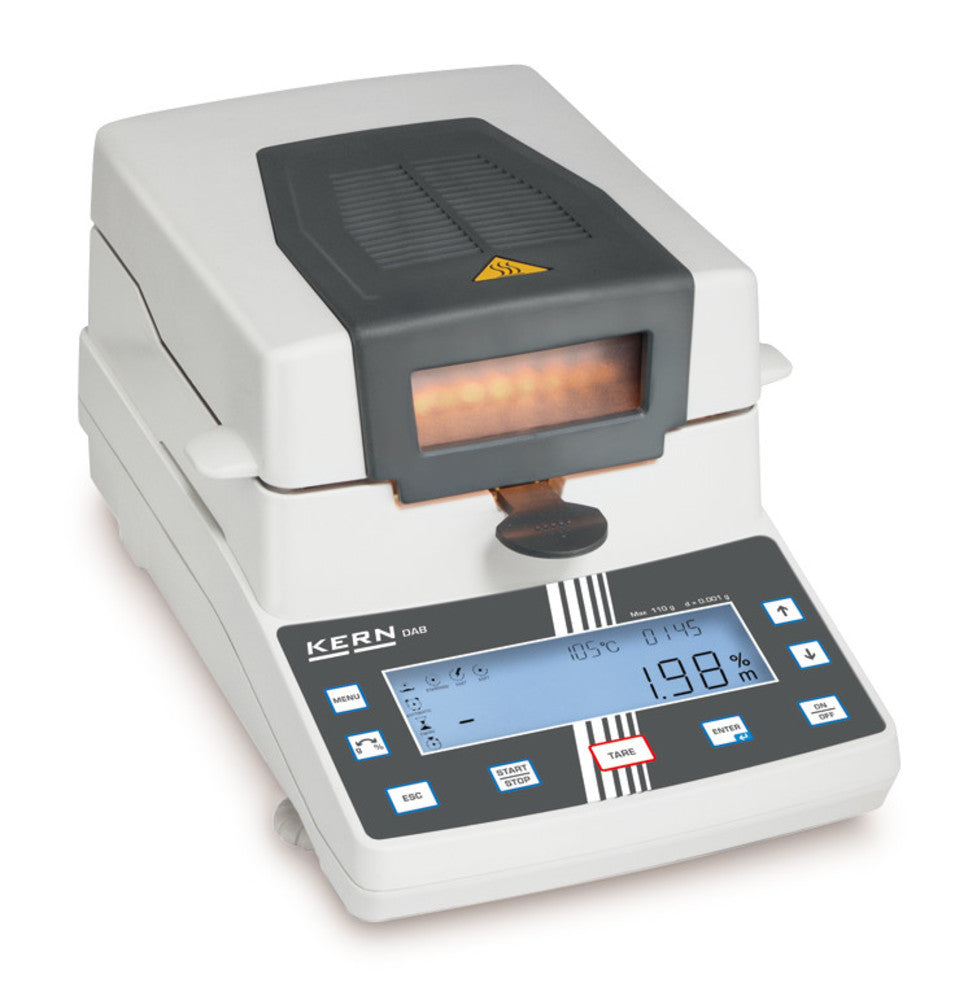

Moisture analyser DAB 100-3, Weigh. range 110g, readab. 0,01%/0,001g
Features:
- Backlit display: % humidity, % dry matter or weight loss in g
- Heat source: halogen quartz glass heater
- Switch-off criteria:– automatic switch-off (2 mg weight loss in 45 s)– scheduled switch-off (3 min up to 99 h 59 min at 10 s intervals)
- Drying modes: standard, gentle and quick drying
- Internal memory for automatic execution of 15 drying processes and five memory spaces for test results
- RS 232 data port
- Sample viewing window
Technical Information
| Type | DAB 100-3 |
| Weighing range | 110 g |
| Readability | 0.01 % / 0.001 g |
| Temperature range | 40 to 199 °C |
| Additional data | can be selected in 1 °C increments |
| Reproducibility | 0,15 % (2 g)0,03 % (10 g) |
| Heating technology | halogen quartz glass heater |
| Time setting from | 3 min |
| Time setting up to | 99:59 h |
| Weighing pan | Ø 92 mm |
| W x D x H | 240 x 365 x 180 mm |
| Weight | 5,0 kg |
| Mains connection | 220 V, 50 Hz |
