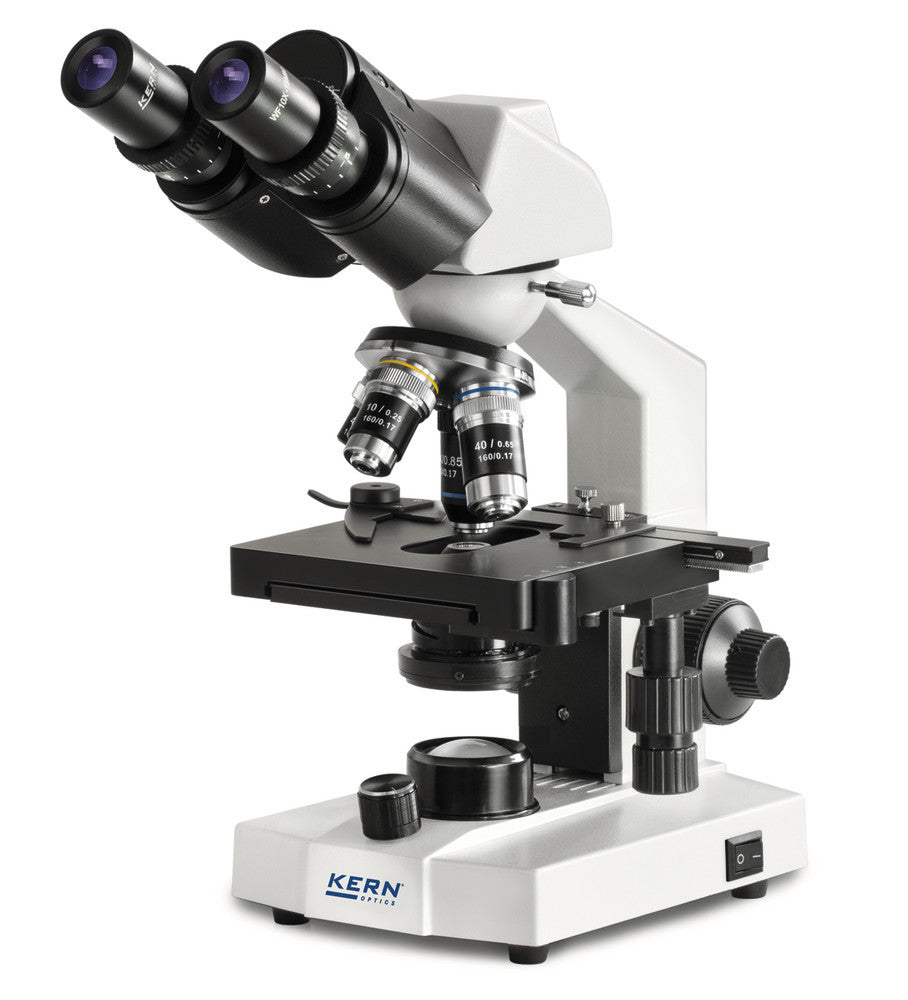

OBS 106 transmitted light microscope, Binocular, incl. eyecups, dust cover and batteries
Educational Line. Intuitive transmitted light microscope (bright-field) with clear controls, specifically designed for newcomers to microscopy. Ideal for education and training applications. For translucent, thin, high-contrast and simple specimens.
- The 4-slot lens revolver is equipped with three achromatic standard lenses (4x/10x/40x/), which enable a range of bright-field analyses
- The 1.25 Abbe condenser with aperture cover, with its height-adjustable focus, enables ideal light concentration and illumination of the specimen
- The mechanical cross table ensures fast working and positioning of the specimen. It features a coaxial coarse and fine focus drive fitted on both sides for adjusting the height and focussing on the specimen
- It is also suitable for mobile use at any time thanks to the rechargeable batteries
- The 0.5 W LED transmitted light illumination is infinitely dimmable
Delivery incl. colour filter (blue, integrated), batteries, eyecups and dust cover.
Technical Information
| Type | OBS 106 |
| Tube | binocular |
| Total magnification | 40x, 100x, 400x |
| Magnification type | turret |
| Ocular magnification | widefield 10x |
| Lenses | achromatic |
| Lens arrangement | 4-way, tilted forwards |
| Lens magnification | - 4x/N.A. 0.10, W.D. 18.0 mm - 10x/N.A. 0.25, W.D. 7.0 mm - 40x/N.A. 0.65 (spring), W.D. 0.53 mm |
| Field of view | 18 mm |
| Dioptre compensation | on both sides |
| Angular observation | 30 ° |
| Head | can be rotated 360° |
| Distance between eyepieces | 55-75 mm |
| Condenser | Abbe N.A. 1.25 with aperture cover |
| Köhler illumination | no |
| Light source | LED |
| Type of lighting | transmitted light |
| Image focusing | coaxial coarse and fine focus with scale: 2.5 µm |
| Optics | infinity |
| Microscope stage | 115 x 125 mm areacoaxial x/y travel range of 75 x 18 mm |
| Power supply | powered by the mains and batteries |
| Mains connection | 100-240 V, 50/60 Hz |
