Beschreibung

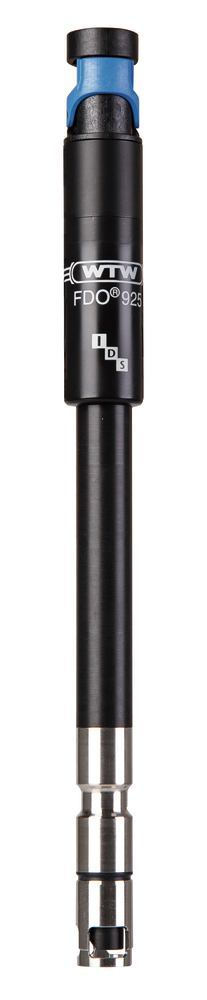

Oxygen sensor, FDO 925-P (IDS technology), without connecting cable or wireless equipment
High-quality digital sensors with IDS technology (Intelligent Digital Sensors). Suitable for IDS-capable output devices such as MultiLine® IDS and inoLab® Multi IDS.
- Conversion of the measurement signals into digital signals directly in the sensor head and interference-free, precise transmission to IDS devices
- Storage of sensor ID (sensor name and serial number), calibration data and measurement settings and automatic login to the IDS device. This allows operation on different IDS devices without recalibration
- With memory for up to 10 calibrations
- Integrated temperature gauge for temperature-compensated measurements
Optical IDS oxygen sensor for field and laboratory applications with fast-responding bevelled membrane, pressure resistant up to 10 bar.
Technical Information
| Type | FDO® 925-P |
| Version | without connecting cable or radio equipment; please order separately |
| Parameters | oxygen temperature |
| O2 concentration measuring range | 0-20 mg/l |
| O2 saturation concentration | ±1.5% of the measured value |
| O2 saturation measuring range | 0-200 % |
| O2 saturation accuracy | ±1.5% of the measured value |
| Operating temperature | 0 to +50 °C |
| Temperature accuracy | ±0.2 °C |
| Shaft length | 150 mm |
| Ø Shaft | 15.3 mm |
| Shaft material | POM |
| Temperature sensor | NTC 30 kΩ |
| IP rating | 67 |
| Connection | plug head |
