Beschreibung

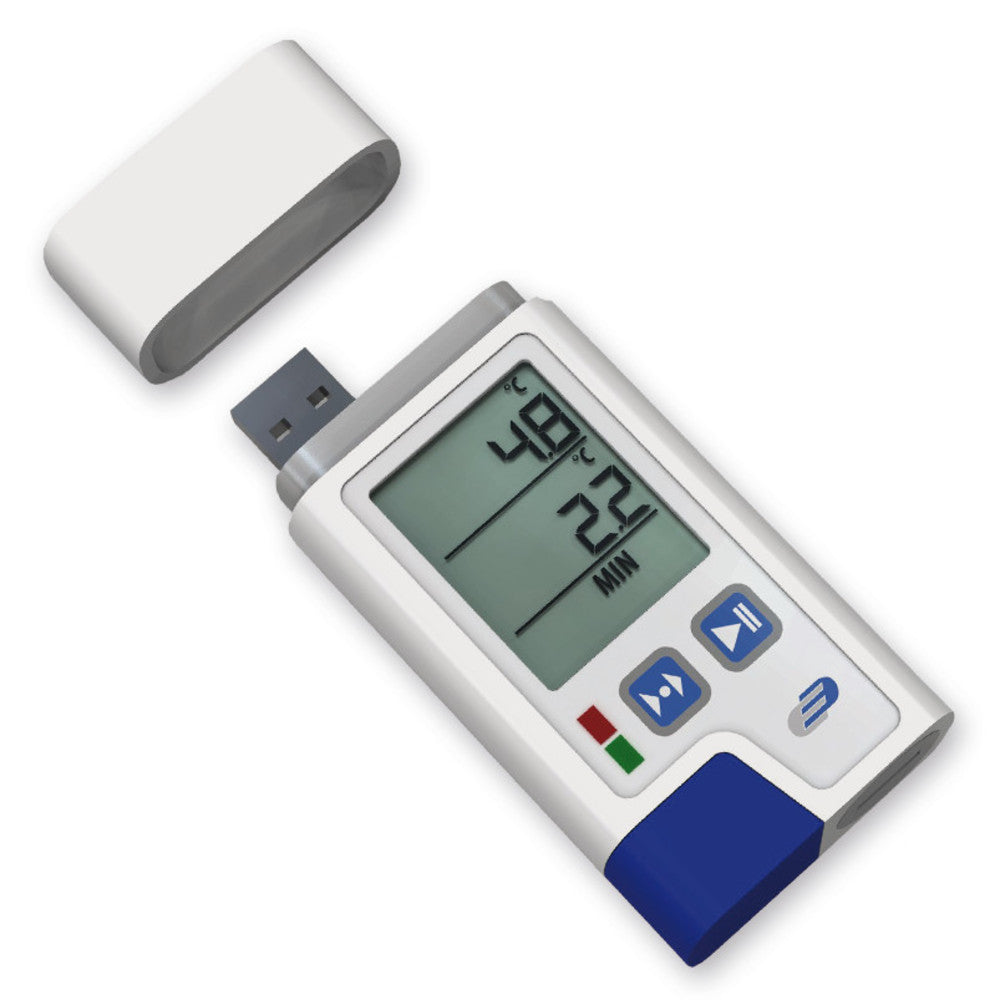

PDF datalogger LOG210, for temperature and humidity, incl. ISO calibration certificate, wall mount and battery. Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV188., UN-Nr. 3091
For monitoring and documentation of measured values during transportation and storage.
- Pre-programmed data logger (measuring interval LOG200, LOG200E: 15 min and LOG210, LOG220, LOG220E: 5 min)
- Automatic data output as PDF file, no driver installation required
- Status and alarm LEDs with audible signal
- Windows-compatible software for logger programming (e.g. measuring cycle, alarm limits); please download free of charge
- Motion sensor detects and documents vibrations (e.g. changing location or opening of windows and doors)
- Network operation possible, please order USB cable separately
Delivery incl. ISO calibration certificate, wall mount and battery.
Technical Information
| Type | LOG210 |
| Parameters | temperature humidity |
| Temperature measuring range | -40 to +70 °C |
| Temperature measuring range, internal | -40 to +70 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.5 °C (-10 to +40 °C) ±1.0 °C (outside) |
| Rel. humidity measuring range | 0 to 100 % |
| Rel. humidity resolution | 0.1 % |
| Rel. humidity accuracy | ±3.5% (20–80%) ±5% (outside) |
| Display | yes |
| Data memory | 100 000 measured values |
| Measuring cycle | 10 s to 24 h |
| Port | USB |
| Min./max. function | yes |
| L x W x D | 91.5 x 42 x 20 mm |
| Weight | 83 g |
| Power supply | 3.6 V/1/2 AA lithium battery |
| Mains connection | 100-240 V, 50/60 Hz |
