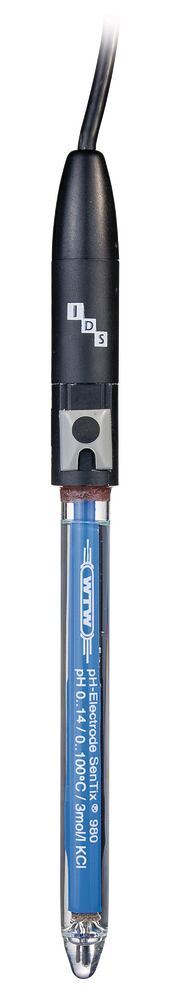

pH single-rod measuring cell, SenTix 980 (IDS technology), Incl. fixed cable (specific, 4-pole)
High-quality digital sensors with IDS technology (Intelligent Digital Sensors). Suitable for IDS-capable output devices such as MultiLine® IDS and inoLab® Multi IDS.
- Conversion of the measurement signals into digital signals directly in the sensor head and interference-free, precise transmission to IDS devices
- Storage of sensor ID (sensor name and serial number), calibration data and measurement settings and automatic login to the IDS device. This allows operation on different IDS devices without recalibration
- With memory for up to 10 calibrations
- Integrated temperature gauge for temperature-compensated measurements
With liquid electrolyte for demanding measurement applications. Glass shaft and platinum diaphragm are easy to clean. Can be used even with difficult samples.
Technical Information
| Type | SenTix® 980 |
| Version | with fixed cable (1.5 m) |
| Parameters | pH temperature |
| pH range | 0 to 14 |
| pH resolution | 0,001 |
| pH accuracy | ±0.004 |
| Operating temperature | 0 to +100 °C |
| Temperature accuracy | ±0.1 °C |
| Diaphragm | platinum |
| Reference system | Ag/AgCl |
| Electrolyte | 3 mol/l KCl |
| Storage solution | 3 mol/l KCl |
| Shaft length | 120 mm |
| Ø Shaft | 12 mm |
| Shaft material | glass |
| Temperature sensor | NTC 30 kΩ |
| IP rating | 67 |
| Connection | specific (4-pole) |
