Beschreibung

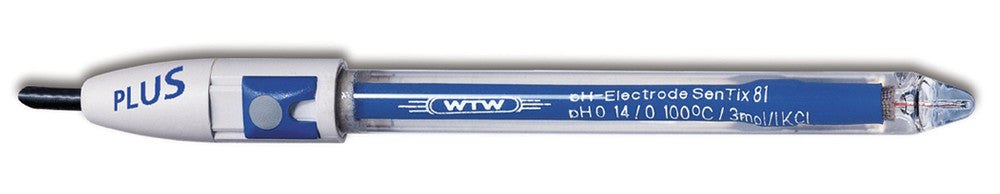

pH single-rod measuring cell, SenTix 81, incl. fixed cable (DIN 19262, 1 x 4 mm banana plug)
For demanding pH measurements, even in difficult samples. With liquid electrolyte and glass shaft. For quick response, high precision and long service life. Optimal contact with the sample thanks to platinum wire diaphragm. Low risk of clogging thanks to increased electrolyte flow. Resistant to stirring effects.
Technical Information
| Type | SenTix® 81 |
| Version | with fixed cable (length 1 m) |
| Parameters | pH temperature |
| pH range | 0 to 14 |
| Operating temperature | 0 to +100 °C |
| Diaphragm | platinum |
| Electrolyte | 3 mol/l KCl |
| Maintenance-free | no |
| Storage solution | 3 mol/l KCl |
| Shaft length | 120 mm |
| Ø Shaft | 12 mm |
| Shaft material | glass |
| Temperature sensor | NTC 30 kΩ |
| Connection | DIN 19262 (pH), 1 x 4 mm banana (°C) |
