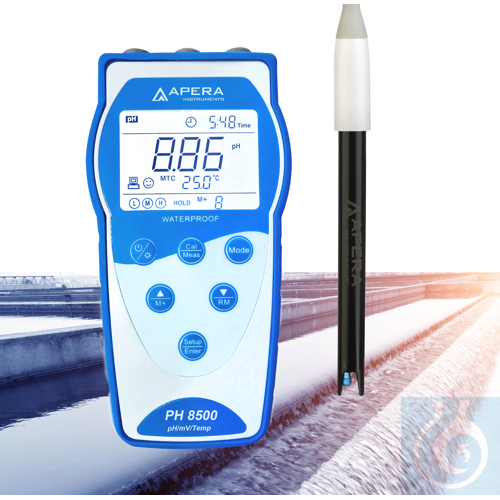

PH8500-WW Portable pH Meter for Wastewater Treatment, with Data Management
€410,00
Catalog nr.: 28APE190079
Menge
The PH8500-WW from Apera Instruments is a handy and easy-to-use meter for the determination of pH, ORP (electrode sold separately e.g. 301Pt-C) and temperature. It is particularly suitable for pH measurement of wastewater, emulsions, dirty water and other turbid water solutions containing sulfides and proteins. The LabSen® 333 pH electrode included in the scope of delivery has a solid electrolyte which, in combination with the hole diaphragm structure, prevents the diaphragm from becoming clogged. A polyoxymethylene (POM) sheath serves as corrosion protection for the electrode and prevents possible damage from impacts. The electrode has an integrated temperature sensor, which enables automatic temperature compensation (ATC).
The PH8500-WW is protected by a silicone cover and is waterproof and dustproof (IP57), making it particularly well suited for field use, even in harsh environments. In addition, the meter has a memory function and GLP data management with storage for up to 500 memory groups. It can be connected to a PC or laptop via USB to either read out the memory groups or perform real-time storage.
- Equipped with the LabSen® 333 pH electrode for pH measurement of wastewater, emulsions, dirty water, etc.
- Silicone case provides safe & firm grip and protects from shocks
- Waterproof and dustproof (IP57) for use in harsh environments
- Fold-out stand for convenient indoor operation
- Quick and easy 1- to 3-point calibration
- Large, illuminated LCD simultaneously displays conductivity value and temperature, as well as additional measurement and calibration information
- GLP data management (500 memory groups) with data output via USB, also with real-time storage function
- Self-diagnosis supports calibration or troubleshooting
Technical Specifications
| pH | Measuring range | -2.00 to 16.00 pH |
| Resolution | 0.1/0.01 pH | |
| Accuracy | ±0.01 pH ±1 digit | |
| Temperature compensation | 0 to 100 ° C (automatic or manual) | |
| calibration | 1 to 3 points, automatic | |
| mV | Measuring range | ±2000 mV |
| Resolution | 0.1/1 mV | |
| Accuracy | ±0.1% F.S ±1 digit | |
| Temperature | Measuring range | 0 to 100 °C |
| Resolution | 0,1 °C | |
| Accuracy | ±0.5 °C ±1 digit | |
| More | Memory locations | 500 records |
| Data content | Numbering, date, time, Measured value, unit, temperature | |
| Interface | USB | |
| Power supply | 3 x AA batteries / DC 5V (USB port) | |
| IP rating | IP57 | |
| Electrode connections | BNC (pH/ ORP), 8-pin (conductivity), RCA (temperature) | |
| Dimensions / Weight | 88x170x33 mm / 313g with case: 360x270x76 mm / 1,3 kg |
A complete set contains:
- PH8500 pH meter
- LabSen® 333 pH electrode
- Calibration solution (pH 4.00; pH 7.00; pH 10.01) 50ml each
- USB cable
- USB stick with PC-Link software
- Screwdriver
- manual
- Carrying case
The meter is RoHS and EC certified and has a 3 year warranty (6 months on the electrode).
PH8500-WW Portable pH Meter for Wastewater Treatment, with Data Management
1 piece
€410,00
