Beschreibung

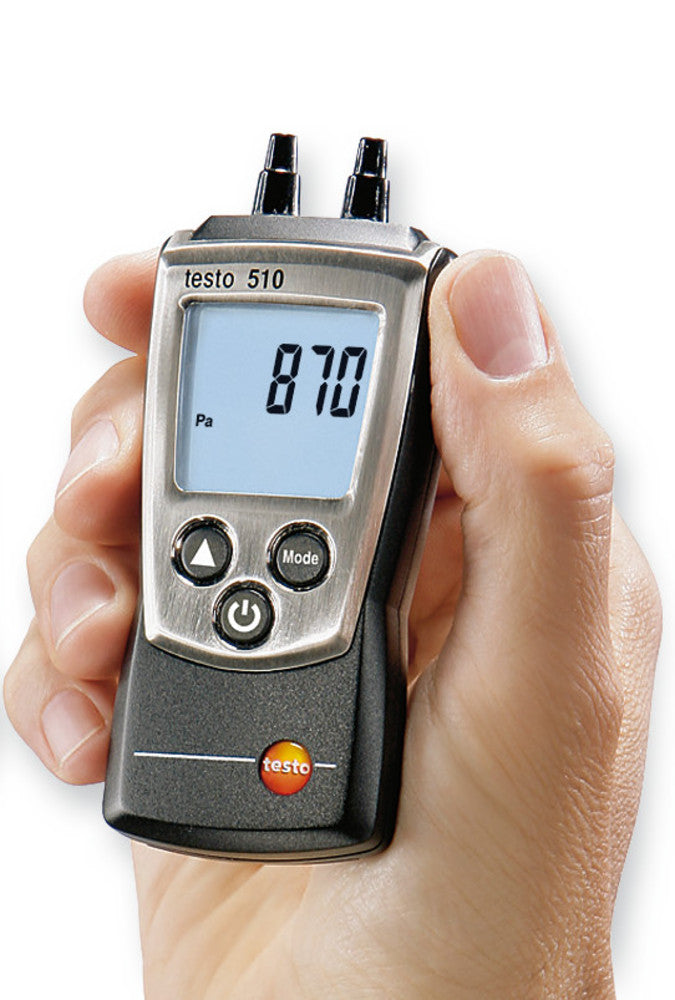

Pocket differential pressure gauge, testo 510, measuring range 0 - 100 hPa
For measuring small differential pressures (e.g. testing filter permeability), measuring gas flow pressure, etc.
- With display illumination
- AUTO-OFF function to prolong battery life, can be switched off
- With temperature compensation
- Min/max function, hold function
- Magnets on the back enable hands-free working
- Tube connections for ID 4 or 6 mm
Delivery incl. silicone connector tubes (2 x 20 cm), wrist strap, belt bag, protective cover, calibration protocol and batteries.
Technical Information
| Parameters | pressure |
| Air pressure measuring range | 0–100 hPa |
| Resolution | 0,01 hPa |
| Air pressure accuracy | ±0.03 hPa (0–0.30 hPa) ±0.05 hPa (0.31–1.00 hPa) ±(0.1 hPa + 1.5% of m.v.) (1.01 to 100 hPa) |
| Units | hPa, mbar, Pa, mmH2O, mmHg, inH20, inHg, psi |
| Operating temperature | 0 to +50 °C |
| Display | yes |
| Min./max. function | yes |
| Weight | 255 g |
| L x W x D | 119 x 46 x 25 mm |
| Power supply | 2x battery Micro/AAA 1.5 V |
| Type | testo 510 |
