Beschreibung

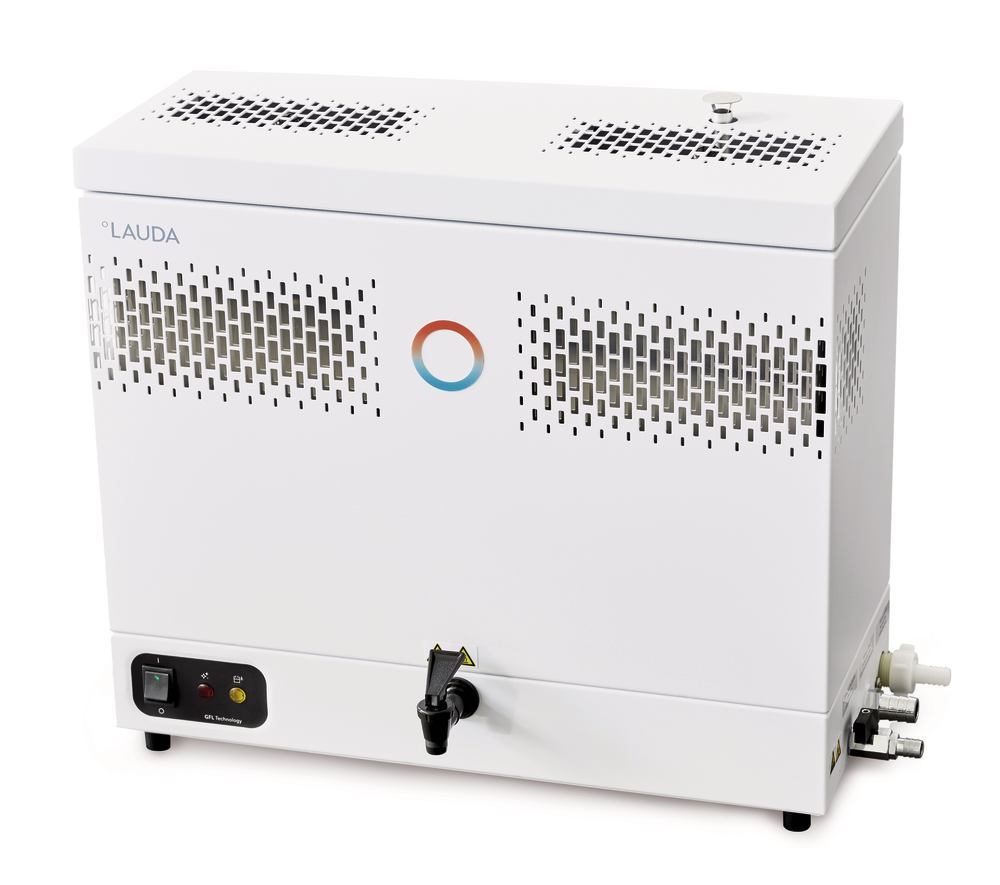

Puridest PD 4 R water still, 2.3 µS/cm, 4 l/h, with tank (8 l), incl. 230 V, 50/60 Hz safety plug
Fully automatic device for creating ultra-pure distilled water.
- Energy saving thanks to distilling heated cooling water
- CO2 degassing opening on the condenser
- Still easily accessible for cleaning purposes
Please pay attention to supply voltages!
Mono-still with reservoir, suitable for wall mounting and tabletop use.
- Tubular heating element, still, reservoir and condenser made of stainless steel
- Reservoir for distillate holds double the hourly output of the device
- Distillate tap with permanent and tilt drain positions
- Condenser (cooling coil) in the reservoir, easily replaceable
- Solenoid valve for controlling the water supply
- Water saving thanks to automatic switch-off function preventing unnecessary water consumption
- Electronic contamination monitoring of the still with distillation stop and visual cleaning indicator
- Automatically refills the reservoir after distillate drawing, controlled via electronic level detection
- Thermostatic low-water safety device
- Double-wall housing design
Technical Information
| Type | PD 4 R |
| Production output | 4 l/h |
| Heating output | 3000 W |
| Vol. | 8 l |
| Conductivity mono destillate at 25 °C | 2.3 µS/cm |
| Width | 620 mm |
| Depth | 330 mm |
| Height | 460 mm |
| Max. operating pressure | 7 bar |
| Connection | water cooling intake: 1/2″ water cooling drain: 3/4″ |
| Water consumption | 0.8 l/min |
| Intake power | 3000 W |
| Mains connection | 230 V, 50/60 Hz |
| Power cord | with angled safety plug (CEE7/7) |
